- Body Material: Metal
- Min. Wire Size: #14 AWG
- Max. Wire Size: #8 AWG
- Wire Size Min: #14 AWG
- Wire Size Max: #8 AWG
- Voltage: 120 to 277V AC
Specifications
| Part Number | ET1725C |
| Brand | Intermatic |
| Operation Mode | 7 Days |
| Number of Channels | 2 |
| Contact Form | SPST, DPST |
| Body Material | Metal |
| Indoor/Outdoor Usage | Indoor |
| Depth | 3 in |
| Height | 7 3/4 in |
| Width | 5 in |
| Min. Wire Size | #14 AWG |
| Max. Wire Size | #8 AWG |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
| Product Height | 7.875 |
| Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Wire Size Min | #14 AWG |
| Product Width | 5.125 |
| Product Depth | 3.4375 |
| Wire Size Max | #8 AWG |
| Overall Height | 7 7/8 in |
| Overall Width | 5 1/8 in |
| Overall Depth | 3 7/16 in |
| Item | Electronic Timer |
| Time Minimum Setting | 2 min |
| Voltage | 120 to 277V AC |
| Amps | 30 A |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Events Available - Electronic Timer | 28 |
| Available Actions - Electronic Timer | On/Off |
| Backup Time | 3 yr |
| Color | Gray |
| Number of Poles | 2 |
| Mounting | Surface |
| Pulse Duration | 2 sec |
| Min. Time Setting | 1 min |
| Number of Pulse Events | 14 |
| Backup Device | Battery |
| Max. Time Setting | 7 day |
| Event Allocation - Electronic Timer | 1 On/Off Action = 2 Events |
| NEMA Rating | 1 |
| Standards | cCSAus, California Title 20 |
| Enclosure | Metal |
| Operating Temp. | -40 Degrees to 155 Degrees F |
| Max. On/Off Cycles | 14 |
| Enclosure Type | Indoor type 1 metal |
| Features | Automatic Daylight Savings Functions, Permanent Manual Override, Temporary Override |
| Switch Type | 2xSPST, 1xDPST or Pulse |
| Max. Wattage | 6 W |
| Hz - Electrical | 50-60 Hz |
| Adjustment Type | Automatic |
| Voltage Type | Selector Switch |
| Application | Lighting, Machinery, Pump Controls |
| Series | ET1700 |
| Maximum Pulse Time | 2 sec |
| Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC |
| Voltage Selection Type | Selector Switch |
| Operating Temperature Max (°F) | 104 |
| Number Of Circuits | 2 |
| Applications | Indoor Lighting Control Machinery & Pump Controls Timing/Scheduling ON/OFF |
| Maximum ON/OFF Operations | 28 |
| Backup Type | Battery |
| Operating Temperature Min (°F) | -40 |
| Wiring Option | Terminals |
| Daylight Savings Adjustment | Automatic |
| Tungsten (NO) Range(s) | 5 A, 120/240 VAC |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Electronic Series | ET1700 Series |
| Maximum Power Consumption (W) | 6 W |
| Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120/240 VAC |
| Tungsten Range(s) | 5 A, 120-240 VAC |
| Motor Load Ratings NO Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC |
| Maximum ON/OFF Times | Indefinite |
| Minimum ON/OFF Times | 1 min |
| Minimum Pulse Time | 2 sec |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Inductive Load Ratings NO Ranges | 30 A, 120/240 VAC |
| Battery Service Type | Field Serviceable |
| Electronic Ballast Load Ratings Ranges | 1 A, 120-277 VAC |
| Battery Type | AAA |
| Resistive Load Ratings Ranges | 20 A, 28 VDC; 30 A, 120/240 VAC |
| On Off Operations | 28 |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 104 |
| Time Setting - Maximum | 7 day |
| Operating Temperature - Minimum | -40 Degrees F |
| Mounting Style | Surface |
| Horsepower @ 240V - Maximum | 2 hp |
| Pulse Duration - Maximum | 2 sec |
| Timer Functions | On/Off Pulse |
| NEMA Enclosure Rating | 1 |
| Body Color | Grey |
| Pulse Duration - Minimum | 2 sec |
| Events Available | 28 |
| Horsepower @ 120V - Maximum | 1 hp |
| Operating Temperature - Maximum | 104 Degrees F |
| Electrical Installation Type | Screw Terminal |
| Current Rating - Maximum | 30 A |
| Astronomic Functionality | No |
| AC Voltage Rating | 120-277V AC |
| Time Setting - Minimum | 1 min |
| Time Maximum Setting | 7 Days |
Description

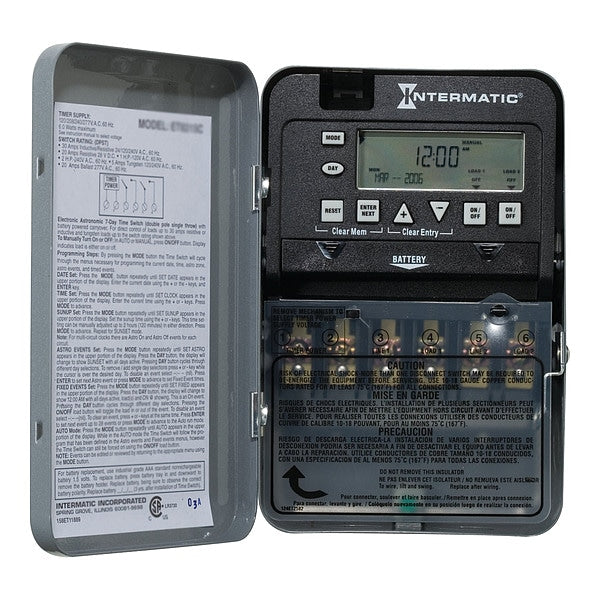

The Intermatic ET1725C is an electronic timer with a metal body. It operates as a 7-day, DPST (Double Pole Single Throw) timer for 120 to 277V AC circuits, rated at 30 amps and 1 HP at 120V or 2 HP at 240V. This timer meets cCSAus and California Title 20 standards with a NEMA 1 rating.
