- Voltage: 120 to 277V AC
- Amps: 30 A
- Max. Wire Size: #8 AWG
- HP @ 120V: 1
- HP @ 240V: 2
- NEMA Rating: 3R
Specifications
| Part Number | EP100C |
| Brand | Intermatic |
| Operation Mode | 24 hr |
| Number of Channels | 1 |
| Contact Form | SPST |
| Voltage | 120 to 277V AC |
| Amps | 30 A |
| Width | 5 1/2 in |
| Depth | 3 3/4 in |
| Height | 9 3/8 in |
| Display Height | 1 in |
| Display Width | 3 in |
| Max. Wire Size | #8 AWG |
| Overall Width | 5 1/2 in |
| Overall Depth | 3 3/4 in |
| Overall Height | 9 3/8 in |
| Item | Electronic Timer |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Events Available - Electronic Timer | 28 |
| Available Actions - Electronic Timer | On/Off |
| Backup Time | 3 yr |
| Standards | California Title 20, cCSAus |
| Number of Poles | 1 |
| Enclosure | Plastic |
| Min. Time Setting | 1 min |
| Max. Time Setting | 24 hr |
| Description/Special Features | Daylight Saving Time Adjustment Enabled Out of The Box |
| Number of Pulse Events | 0 |
| NEMA Rating | 3R |
| Color | Beige |
| Operating Temp. | -40 Degrees to 155 Degrees F |
| Event Allocation - Electronic Timer | 1 On/Off Action = 2 Events |
| Backup Device | Battery |
| Max. On/Off Cycles | 28 |
| Mounting | Surface |
| Enclosure Type | Outdoor type 3R plastic |
| Max. Wattage | 6 W |
| Hz - Electrical | 60hz |
| Switch Type | SPST |
| Features | Automatic Daylight Savings Functions, Permanent Manual Override, Temporary Override |
| Voltage Type | Selector Switch |
| Application | Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads |
| Adjustment Type | Automatic |
| Astronomic Functionality | No |
| Events Available | 28 |
| Mounting Style | Surface |
| Electrical Installation Type | Screw Terminal |
| AC Voltage Rating | 120-277V AC |
| Series | EP100C |
| Timer Functions | On/Off |
| Time Setting - Minimum | 1 min |
| Horsepower @ 120V - Maximum | 1 hp |
| Horsepower @ 240V - Maximum | 2 hp |
| Operating Temperature - Minimum | -40 Degrees F |
| Time Setting - Maximum | 24 hr |
| Body Color | Beige |
| NEMA Enclosure Rating | 3R |
| Current Rating - Maximum | 30 A |
| Indoor/Outdoor Usage | Outdoor |
| Body Material | Plastic |
| Operating Temperature - Maximum | 104 Degrees F |
| Time Minimum Setting | 2 min |
| Time Maximum Setting | 24 hr. |
Description

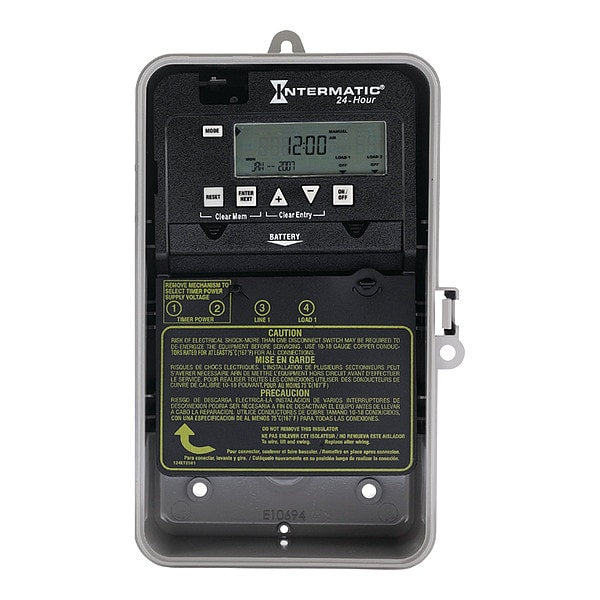

The Intermatic EP100C is a 24-hour, single-circuit electronic timer with a SPST-NO switch rated for 30 amps at 120 to 277V AC. This timer controls the on/off schedule of connected equipment, with horsepower ratings of 1 HP at 120V and 2 HP at 240V. It meets California Title 20 and cCSAus standards and features daylight saving time adjustment enabled out of the box.
