- Voltage: 120V AC
- Amps: 30 A
- Wire Size Max: #8 AWG
- Wire Size Min: #10 AWG
- HP @ 120V: 1
- NEMA Rating: 1
Specifications
| Part Number | EH10 |
| Brand | Intermatic |
| Operation Mode | 25 hour |
| Number of Channels | 1 |
| Voltage | 120V AC |
| Amps | 30 A |
| Contact Form | SPST |
| Depth | 3 in |
| Height | 7 3/4 in |
| Width | 5 in |
| Display Height | 1/2 in |
| Display Width | 7/8 in |
| Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Wire Size Max | #8 AWG |
| Product Width | 5.08 |
| Product Depth | 3 |
| Wire Size Min | #10 AWG |
| Product Height | 7.5 |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
| Overall Height | 7 1/2 in |
| Overall Width | 5 1/16 in |
| Overall Depth | 3 in |
| Item | Electronic Timer |
| HP @ 120V | 1 |
| Events Available - Electronic Timer | 12 |
| Available Actions - Electronic Timer | On/Off |
| Standards | cCSAus |
| Backup Time | 3 yr |
| Backup Device | Battery |
| NEMA Rating | 1 |
| Min. Time Setting | 1 min |
| Number of Pulse Events | 0 |
| Operating Temp. | -40 Degrees to 104 Degrees F |
| Max. Time Setting | 24 hr |
| Color | Gray |
| Description/Special Features | For Water Heaters, LED Load Indicator, With External Switch |
| Event Allocation - Electronic Timer | 1 On/Off Action = 2 Events |
| Number of Poles | 1 |
| Max. On/Off Cycles | 12 |
| Enclosure | Metal |
| Mounting | Snap-In |
| Switch Type | SPST |
| Features | External Override Switch, LED Indicator |
| Watts | 3600 |
| Enclosure Type | Indoor type 1 metal |
| Application | Machinery, Irrigation, Water Heaters |
| Series | EH |
| Battery Type | AA |
| Material | Metal |
| Battery Service Type | Replaceable |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Maximum ON/OFF Times | 1min |
| Motor Load Ratings NC Ranges | 30 A |
| Backup Protection Time | 3 years |
| Maximum ON/OFF Operations | 42 |
| Backup Type | Battery |
| Inductive Load Ratings NO Ranges | 30 A |
| Body Material | Metal |
| Operating Temperature Max (°F) | 104 |
| On Off Operations | 42 |
| Wiring Option | Terminals |
| Resistive (NC) Range(s) | 30 A |
| General Purpose (NC) | 30 A |
| Inductive Load Ratings NC Ranges | 30 A |
| Operating Temperature Min (°F) | -40 |
| Minimum ON/OFF Times | 1 min |
| Maximum Power Consumption (W) | 1 W |
| Applications | Agriculture Feeders Greenhouse Misting Control Water Heater Control |
| Number Of Circuits | 1 |
| General Purpose (NC) Range(s) | 30 A |
| Operating Temperature Max (°F) | 104 |
| Operating Temperature Min (°F) | -40 |
| AC Voltage Rating | 120V AC |
| NEMA Enclosure Rating | 1 |
| Compatible Lighting | LED |
| Time Setting - Minimum | 1 min |
| Astronomic Functionality | No |
| Events Available | 42 |
| Operating Temperature - Minimum | -40 Degrees F |
| Time Setting - Maximum | 24 hr |
| Electrical Installation Type | Screw Terminal |
| Indoor/Outdoor Usage | Indoor |
| Operating Temperature - Maximum | 104 Degrees F |
| Timer Functions | On/Off |
| Mounting Style | Surface |
| Current Rating - Maximum | 30 A |
| Horsepower @ 120V - Maximum | 1 hp |
| Body Color | Grey |
| Time Minimum Setting | 2 min |
| Time Maximum Setting | 8 Days |
Description

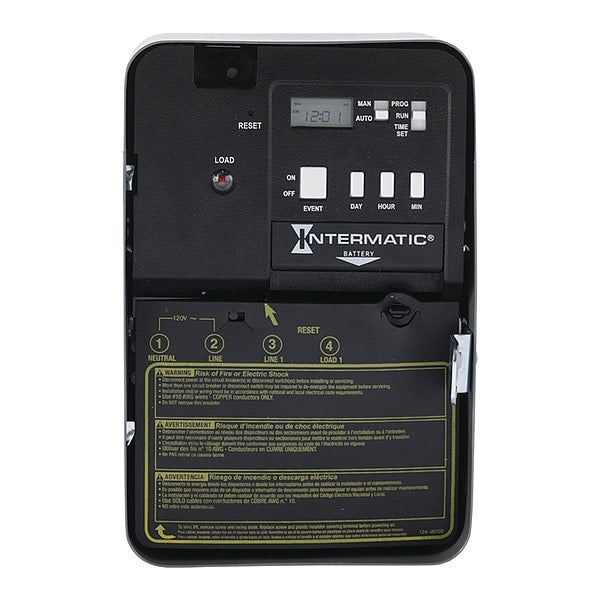

The Intermatic EH10 is an electronic timer (SPST, 24 hr/7 days) rated for 120V AC and 30 A (1 HP @ 120V). It controls the on/off cycle of a connected load, featuring a LED load indicator and an external switch. This timer is specifically designed for use with water heaters and carries a NEMA 1 rating with cCSAus standards, operating from -40°F to 104°F.
