- Nominal Pipe Size: 3/4 in
- Center Line Pipe Center Size: 3-21/32 in
- Orifice Diameter: 3/4 in
- Voltage: 120V AC
- Seal Material: NBR
- Operating Pressure Differential - Maximum: 50 psi Air/Inert Gas, Water
Specifications
| Part Number | EF8215G030 |
| Brand | Asco |
| For Media | Air, Fuel Gas |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 3/4 in |
| Inlet Connection Type | NPTF |
| Overall Length | 3-5/16 in |
| Overall Width | 2-3/8 in |
| Center Line Pipe Center Size | 3-21/32 in |
| Overall Height | 4-15/16 in |
| Orifice Diameter | 3/4 in |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | High Flow |
| Operation Type | Direct Acting |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 50 psi Air/Inert Gas, Water |
| Operating Pressure Differential - Minimum | 0 psi Air/Inert Gas |
| Item | Solenoid Valve |
| Valve Design | 2-Way/2-Position |
| Body Material | Aluminum |
| Application | Heating Equipment, Vacuum Service |
| Standards | CSA, FM, UL Listed |
| Coil Enclosure | Explosion Proof, Watertight |
| Electrical Connections | 18 in Leads |
| Coil Insulation Class | F |
| BtuH | 247,500 BtuH |
| Ambient Temp. Range | 32 Degrees to 125 Degrees F |
| IP Rating | IP65 |
| Ambient Temperature - Maximum | 140 Degrees F |
| Wattage | 10.1 W |
| Environmental Rating | Hazardous, Indoor, Outdoor |
| Thread Type | NPT |
| Fluid Temperature - Maximum | 125 Degrees F |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| Frequency | 50 Hz, 60 Hz |
| Coefficient of Volume (Cv) | 5.1 |
| NEMA Enclosure Rating | 7, 9 |
| Valve Positions | 2-Position |
| Response Time | 120 msec |
| Includes Seal | Yes |
| Ambient Temperature - Minimum | 14 Degrees F |
| Includes Coil | Yes |
| Gas Capacity | 247,500 BtuH |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Operating Pressure Differential Water - Maximum | 50 psi |
Description

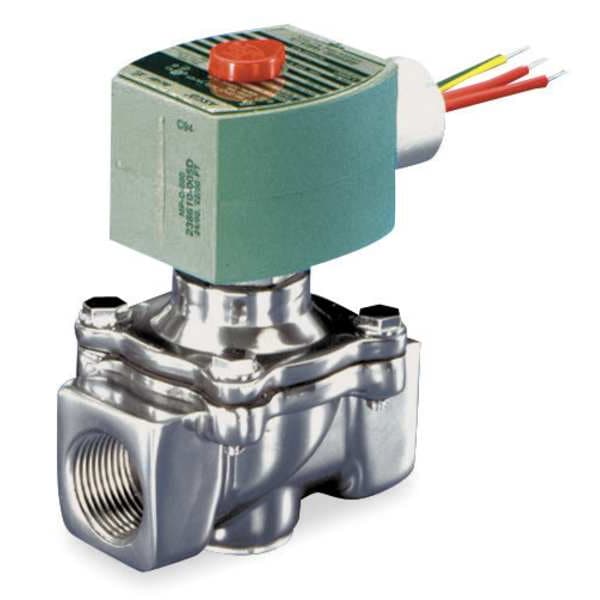

The Asco EF8215G030 is a 2-way, 2-position, normally closed, direct-acting solenoid valve with a 3/4-inch NPTF connection. It controls the flow of air, inert gas, or water, operating with a maximum pressure differential of 50 psi and a minimum of 0 psi for air/inert gas. This high-flow valve features an aluminum body and NBR seal material, and is rated for 120V AC (120/60, 110/50) in an explosion-proof configuration.
