- Max. Pressure (PSI): 150 psi
- Material: Brass Shell
- Inlet Port Connection Size: 3/4 in
- Expansion Tank Connection Size: 1/2 in
- Max. Temp. (F): 250 Degrees F
- Allowable Pressure - Maximum: 90 psi
Specifications
| Part Number | EA79A1004 |
| Brand | Resideo Braukmann |
| Type | Automatic |
| (M)NPT Connection | 3/4 in |
| (F)NPT Connections | 1/2 in |
| Max. Pressure (PSI) | 150 psi |
| Material | Brass Shell |
| Overall Height | 5 in |
| Overall Depth | 5 in |
| Overall Length | 5 3/16 in |
| Overall Width | 1 7/8 in |
| Inlet Port Connection Size | 3/4 in |
| Expansion Tank Connection Size | 1/2 in |
| Item | Air Vent |
| Connection | 3/4 in (M)NPT |
| Max. Temp. (F) | 250 Degrees F |
| Construction | Brass Shell |
| Allowable Pressure - Maximum | 90 psi |
| Inlet Port Connection Gender | Male |
| Operating Temperature - Minimum | 0 Degrees F |
| For Media | Water |
| Release Method | Automatic |
| Inlet Port Connection Type | NPT |
| Operating Temperature - Maximum | 250 Degrees F |
| Installation Orientation | Vertical |
| Float Material | Polyethylene |
| Secondary Inlet Port Connection Gender | Female |
| Body Material | Brass |
| Operating Pressure - Maximum | 150 psi |
| Number of Outlet Ports | 1 |
| Relief Port Location | Top |
| Secondary Inlet Port Connection Type | NPT |
| Number of Inlet Ports | 2 |
| Configuration | One Port |
| Port Adjustability | Adjustable |
| Port Types Included | Inlet, Outlet |
| Product Type | Air Vent |
| Gasket Material | NBR |
| Air Vent Type | Float |
| Inlet Port Location | Bottom |
| Application | Air Ventilation, Potable Water Systems |
Description

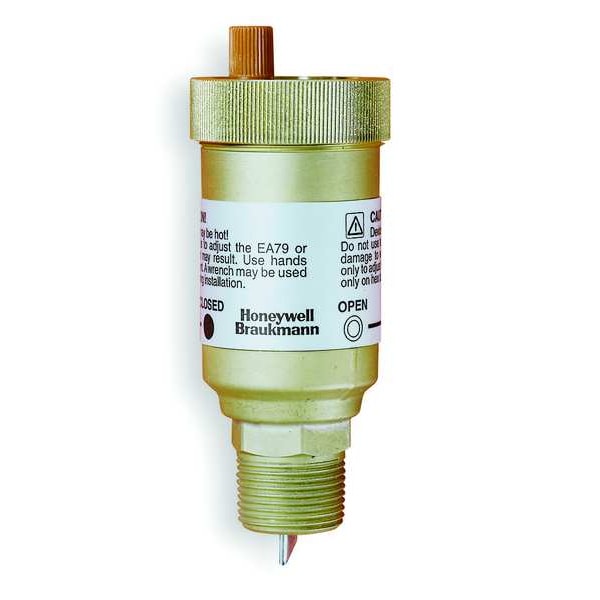

The Resideo Braukmann EA79A1004 is an automatic industrial air vent with a brass shell. This part automatically releases trapped air from liquid systems to prevent air binding and maintain efficient operation. It features a 3/4-inch male NPT inlet and 1/2-inch female NPT expansion tank connection, with a maximum pressure rating of 150 psi.
