- Voltage: 120 to 277V AC
- Body Material: Plastic
- Amps: 30 A
- HP @ 120V: 1
- HP @ 240V: 2
- NEMA Rating: 3R
Specifications
| Part Number | E101B |
| Brand | NSI Industries |
| Operation Mode | 24 hr |
| Number of Channels | 1 |
| Time Minimum Setting | 2 min |
| Indoor/Outdoor Usage | Indoor/Outdoor |
| Voltage | 120 to 277V AC |
| Width | 5 1/16 in |
| Depth | 3 1/16 in |
| Height | 8 5/16 in |
| Overall Height | 8 5/16 in |
| Overall Width | 5 1/16 in |
| Overall Depth | 3 1/16 in |
| Item | Electronic Timer |
| Body Material | Plastic |
| Amps | 30 A |
| Contact Form | SPST |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Events Available - Electronic Timer | 20 |
| Available Actions - Electronic Timer | On/Off |
| Backup Time | 4 day |
| Max. On/Off Cycles | 20 |
| Standards | UL 917, UL Listed |
| Color | Gray |
| Event Allocation - Electronic Timer | 1 On/Off Action = 1 Event |
| NEMA Rating | 3R |
| Operating Temp. | -40 Degrees to 149 Degrees F |
| Description/Special Features | Capacitor for Permanent Schedule Retention, Locking Hasp |
| Enclosure | Plastic |
| Backup Device | Capacitor |
| Max. Time Setting | 24 hr |
| Min. Time Setting | 1 min |
| Mounting | Surface |
| Number of Poles | 1 |
| Application | HVAC, Water Heaters, Lighting, Pump Controls, Fans |
| Series | E |
| NEMA Enclosure Rating | 3R |
| AC Voltage Rating | 120-277V AC |
| Operating Temperature - Maximum | 149 Degrees F |
| Astronomic Functionality | No |
| Time Setting - Maximum | 24 hr |
| Events Available | 20 |
| Operating Temperature - Minimum | -40 Degrees F |
| Body Color | Grey |
| Timer Functions | On/Off |
| Horsepower @ 240V - Maximum | 2 hp |
| Compatible Lighting | Fluorescent, Incandescent, LED |
| Current Rating - Maximum | 30 A |
| Time Setting - Minimum | 1 min |
| Mounting Style | Surface |
| Horsepower @ 120V - Maximum | 1 hp |
| Time Maximum Setting | 24 hr. |
Description

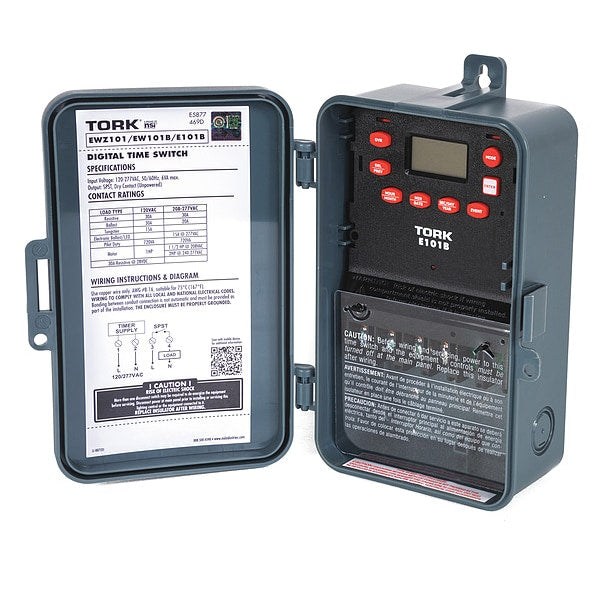

The NSI Industries E101B is an electronic timer with a 24-hour SPST (Single Pole Single Throw) configuration. It operates on 120 to 277V AC and is rated for 30 amps, with horsepower ratings of 1 HP at 120V and 2 HP at 240V. The timer is constructed with a plastic body and carries UL 917 and UL Listed certifications with a NEMA 3R rating.
