- Maximum Operating Temperature: 158 Degrees F
- Ambient Temp. Limits (F): -4 Degrees to 158 Degrees F
- Voltage: 120V AC, 24V DC
- Minimum Operating Temperature: -4 Degrees F
- Voltage Rating: 120V AC, 24V AC/DC
Specifications
| Part Number | DUCTSD |
| Brand | System Sensor |
| Power Source | Removable Battery |
| Overall Width | 2.25 in |
| Overall Height | 4.75 in |
| Maximum Operating Temperature | 158 Degrees F |
| Includes | Cover Integrated Smoke Test Port |
| Tube Length (Ft.) | 1 ft |
| Depth | 2 1/4 in |
| Length | 14 1/4 in |
| Item | Duct Smoke Detector |
| Standards | CSFM, FM, UL |
| Ambient Temp. Limits (F) | -4 Degrees to 158 Degrees F |
| Alarm State (mA) | 135 mA |
| Voltage | 120V AC, 24V DC |
| For Use With | All System Sensor Remote Test Accessories, Fire Alarm Panel |
| Air Velocity (FPM) | 100 to 4000 fpm |
| Alarm Aux. Contact @ 30VDC | 2 A |
| Standby State (mA) | 65 mA |
| Type | Smoke Detector |
| Alarm Current | 135mA RMS @ 24V AC, 35mA RMS @ 120V AC, 65mA @ 24V DC |
| Finish | Unfinished |
| Compatible With | HVAC Systems Monitoring |
| Humidity Range | 0 to 95% RH |
| Detects | Smoke |
| Minimum Operating Temperature | -4 Degrees F |
| Mount Type | Duct |
| Humidity Operating Range | 0% to 95% RH |
| Sensor Type | Photoelectric |
| DC Contact Rating | 65 mA @ 24V |
| Current Rating | 65 mA @ 24V DC |
| Detector Type | Smoke Detector |
| Shape | Rectangular |
| AC Contact Rating | 135 mA @ 24V, 35 mA @ 120V |
| Voltage Rating | 120V AC, 24V AC/DC |
Description

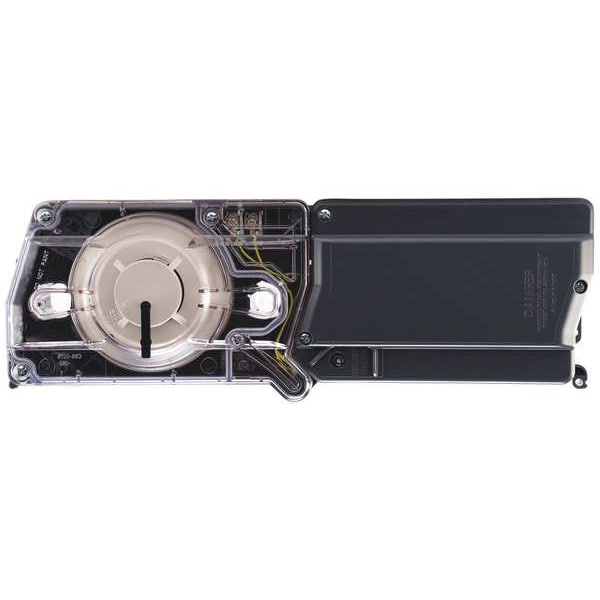

The System Sensor DUCTSD is a duct smoke detector. This device monitors air in HVAC ductwork for smoke and sends a signal to a fire alarm panel. It operates on 120V AC or 24V DC, has ambient temperature limits of -4°F to 158°F, and includes a cover-integrated smoke test port. It is for use with all System Sensor remote test accessories and a fire alarm panel, and is CSFM, FM, and UL listed.
