- Phase: Three
- Operating Temperature - Minimum: -20 Degrees F
- Minimum Voltage Measurement: 70V AC
- Maximum Voltage Measurement: 650V AC
- Minimum Contol Voltage: 18V AC
- Maximum Control Voltage: 277V AC
Specifications
| Part Number | DTP-3 |
| Brand | Diversitech |
| Phase | Three |
| Primary Application | HVAC Installation, Repair or Service |
| Time Delay | 0 to 12 min |
| Percentage Volts Unbalance | 2 to 25 %, Adj |
| Display Type | LCD |
| Item | Line Voltage Monitor |
| Reset Type | Automatic Reset |
| Operating Temperature - Minimum | -20 Degrees F |
| Monitored Measurements | Line Voltage, Over and Under Voltage, Phase Loss, Phase Reversal, Phase Unbalance, Rapid Short Cycling, Voltage Unbalance |
| Minimum Voltage Measurement | 70V AC |
| Maximum Voltage Measurement | 650V AC |
| Minimum Contol Voltage | 18V AC |
| Maximum Control Voltage | 277V AC |
| Switch Action | Normally Closed |
| Operating Temperature - Maximum | 175 Degrees F |
| Normally Closed Output Current | 10 A |
| Contact Form | SPDT |
| Normally Open Output Current | 10 A |
| Delay Type | Adjustable |
Description

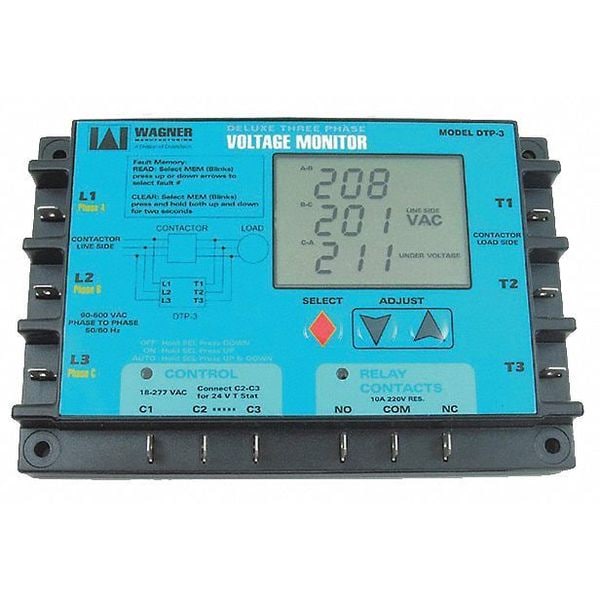

The Diversitech DTP-3 is a three-phase line voltage monitor designed to protect motors. It automatically resets and monitors voltage from 70V AC to 650V AC, with an LCD display and an operating temperature range down to -20 degrees Fahrenheit.
