- Process Connection Size: 1/4 in
- Dial Size: 3 in
- Nominal Dial Size: 3 in
- Connection Size: 1/4 in
- Case Diameter: 2.62 in
- Battery Size: 9V
Specifications
| Part Number | DPGW-08 |
| Brand | Dwyer Instruments |
| Accuracy | +/-1.00% |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Dial Size | 3 in |
| Nominal Dial Size | 3 in |
| Connection Size | 1/4 in |
| Case Diameter | 2.62 in |
| Case Depth | 1.52 in |
| Manufacturer Warranty Length | 1 yr |
| Digit Height | 0.425 in |
| Battery Size | 9V |
| Item | Digital Industrial Pressure Gauge |
| Application | OEM Applications, Process Industries |
| Gauge Case Material | ABS |
| Series | DPGW |
| Primary Pressure Range | 0 to 100 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Socket Material | Stainless Steel |
| Includes Calibration Certificate | No |
| Case Color | Black |
| Includes Batteries | Batteries Included |
| Peak Hold | No |
| Compatible Process Media | Liquids and Compatible Gases |
| Process Connection Gender | Male |
| Case Material | ABS Thermoplastic |
| Number of Display Digits | 4 |
| Process Temperature Range | 30 Degrees to 120 Degrees F |
| Primary Display Range | 0 to 100 |
| Sensor Material | Silicone |
| Display Screen Type | LCD |
| Resolution | Dependent on Range |
| Non-Sparking | No |
| Standards | CE Certified, RoHS, Russian GOST Certification |
| Calibration Certificate | No |
| Memory Storage | No |
| Weatherproof | No |
| Display Range | 0 to 100 psi, 0 to 1600 oz/in², 0 to 203.6 in Hg, 0 to 230.7 ft wc., 0 to 2768 in wc, 0 to 6.89 bar, 0 to 689 kpa, 0 to 7.03 kg/cm² |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Case Shape | Round |
| Pressure Range Type | Pressure |
| Backlit Screen | No |
| Display Units | bar, in Hg, kg/sq cm, kPa, oz/sq in, psi |
| Includes Rubber Boot | No |
| Auto-Shutoff | Yes |
| Gauge Application | For Liquids & Gases |
| Includes Mounting Hardware | No |
| Number of Digits | 4 |
| Power Source | Battery |
| Primary Display Units | psi |
| Adjustable Set Points | No |
| Temperature Error | 0.05% Degrees F |
| Display | LCD |
| Includes | Alkaline Batteries |
| Display Resolution | 0.1 psi |
| Powered By | 9V Battery |
| Low Battery Indicator | Yes |
| Languages | English |
| Features | Automatic Shutoff, Zero Adjustment |
| Connection Type | MNPT |
| Automatic Shut-Off Time | 20 min |
| Display Type | LCD |
| Operating Temperature Range | 30 Degrees to 120 Degrees F |
| Includes Low Battery Indicator | Low Battery Indicator |
| Pressure Measuring Units | bar, in Hg, kg/sq cm, kPa, oz/sq in, psi |
| Process Media Temperature - Minimum | 30 Degrees F |
| Pressure Measurement - Maximum | 100 psi |
| Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Maximum | 120 Degrees F |
Description

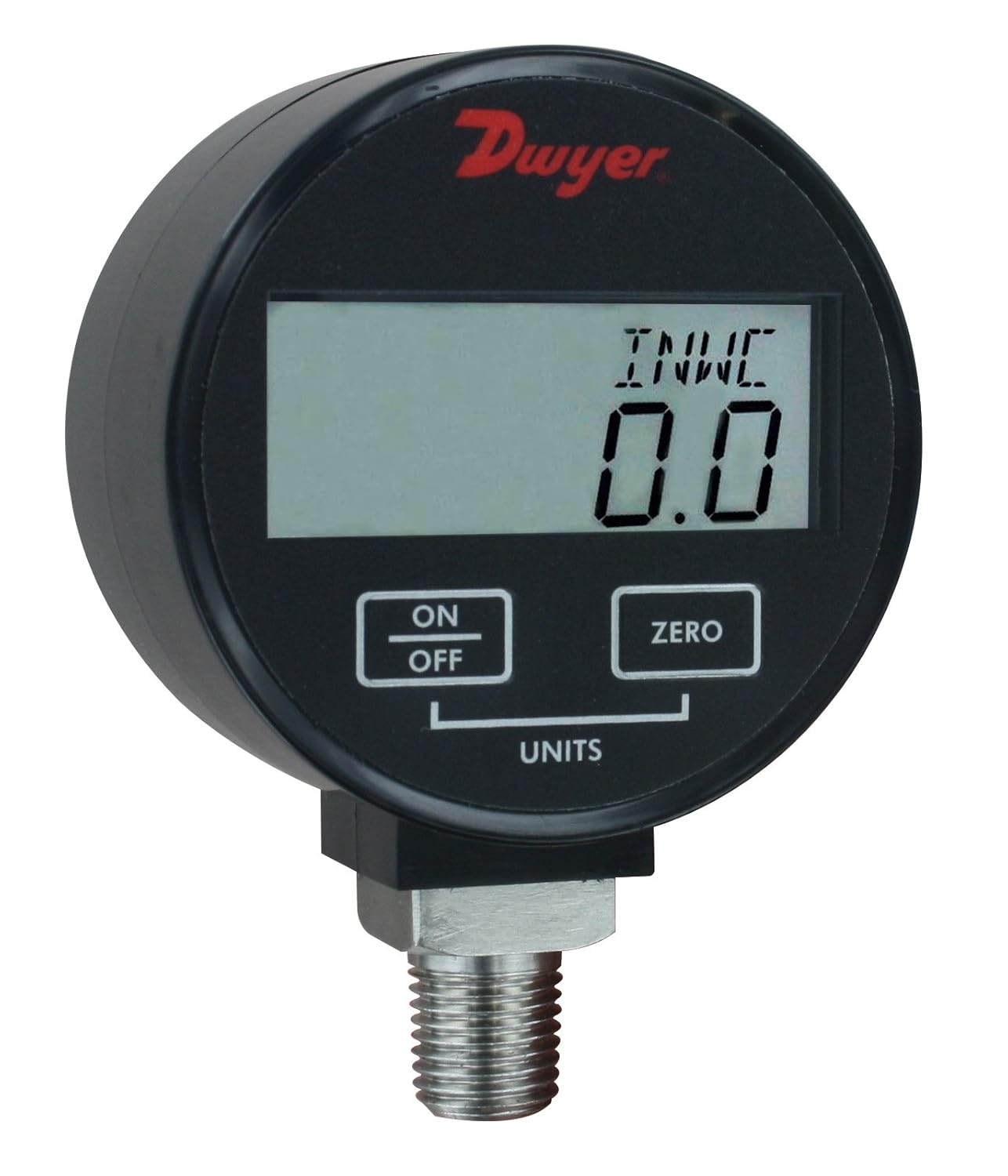

The Dwyer Instruments DPGW-08 is a digital industrial pressure gauge from the DPGW series. This type of gauge measures and displays pressure in a system, providing a digital readout. It features a 0 to 100 psi range, a 3-inch dial, and a 1/4-inch NPT bottom process connection, with an ABS case.
