- Process Connection Size: 1/4 in
- Dial Size: 2 1/2 in
- Connection Size: 1/4 in
- Nominal Dial Size: 2 1/2 in
- Case Diameter: 2.62 in
- Battery Size: 9V
Specifications
| Part Number | DPGA-08 |
| Brand | Dwyer Instruments |
| Accuracy | +/-1.00% |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Dial Size | 2 1/2 in |
| Connection Size | 1/4 in |
| Nominal Dial Size | 2 1/2 in |
| Case Depth | 1.52 in |
| Digit Height | 0.425 in |
| Case Diameter | 2.62 in |
| Manufacturer Warranty Length | 1 yr |
| Battery Size | 9V |
| Item | Digital Industrial Pressure Gauge |
| Application | OEM Applications, Process Industries |
| Gauge Case Material | ABS |
| Series | DPGA |
| Primary Pressure Range | 0 to 100 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Powered By | 9V Battery |
| Case Color | Red |
| Case Material | ABS Plastic |
| Digital Pressure and Vacuum Gauge Type | Digital Pressure Gauge |
| Calibration Certificate | No |
| Memory Storage | No |
| Display | LCD |
| Includes | Instructions |
| Peak Hold | No |
| Socket Material | 316L Stainless Steel |
| Display Units | bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig |
| Gauge Application | For Dry Air & Gases |
| Number of Display Digits | 4 |
| Standards | CE Certified, RoHS, Russian GOST Certification |
| Wetted Materials | Stainless Steel |
| Connection Type | MNPT |
| Sensor Material | Silicone |
| Power Source | Battery |
| Includes Batteries | Batteries Included |
| Display Screen Type | LCD |
| Backlit Screen | No |
| Includes Rubber Boot | No |
| Process Temperature Range | 30 Degrees to 120 Degrees F |
| Compatible Process Media | Air and Compatible Gases |
| Display Range | 0 to 100 psi |
| Non-Sparking | No |
| Includes Mounting Hardware | No |
| Weatherproof | No |
| Languages | English |
| Primary Display Range | 0 to 100 |
| Primary Display Units | psi |
| Auto-Shutoff | Yes |
| Display Resolution | 0.1 psi |
| Low Battery Indicator | Yes |
| Pressure Range Type | Pressure |
| Includes Calibration Certificate | No |
| Case Shape | Round |
| Number of Digits | 4 |
| Process Connection Gender | Male |
| Adjustable Set Points | No |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Temperature Error | 0.05% Degrees F |
| Automatic Shut-Off Time | 20 min |
| Display Type | LCD |
| Operating Temperature Range | 30 Degrees to 120 Degrees F |
| Pressure Measurement - Minimum | 0 psi |
| Includes Low Battery Indicator | Low Battery Indicator |
| Process Media Temperature - Minimum | 30 Degrees F |
| Pressure Measurement - Maximum | 100 psi |
| Process Media Temperature - Maximum | 120 Degrees F |
| Pressure Measuring Units | bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig |
Description

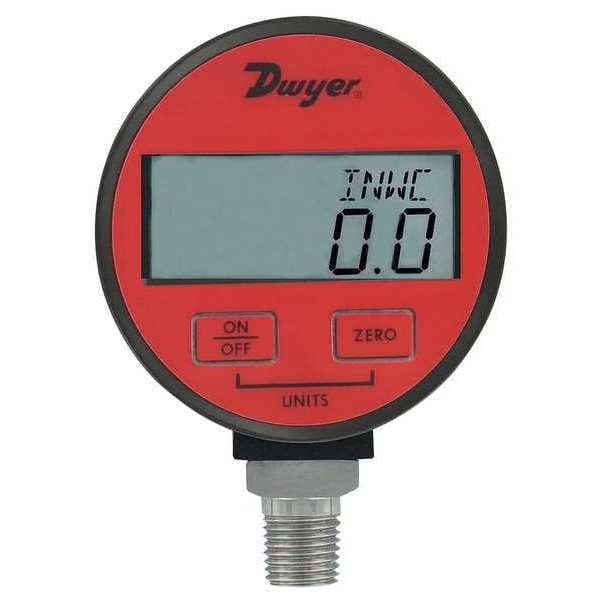

The Dwyer Instruments DPGA-08 is a digital industrial pressure gauge from the DPGA series. This gauge measures and displays pressure, providing a digital readout for process monitoring. It is suited for OEM applications and process industries.
