- Voltage: 115
- HP: 1/70 hp
- Minimum Vent Pipe Diameter: 3 in
- Maximum Vent Pipe Diameter: 6 in
- Cutout Size: 2 5/8 in x 7 1/8 in
- Construction Material: Aluminized Steel Housing and Blower Wheel
Specifications
| Part Number | DJ-3 |
| Brand | Tjernlund Products |
| Type | In-line |
| Voltage | 115 |
| Depth | 5 7/8 in |
| Cut Out Required | 2-5/8 x 7-1/8 |
| HP | 1/70 hp |
| Height | 7 5/8 in |
| Vent Pipe Dia. | 3 to 6 |
| Width | 9 in |
| Overall Height | 8 3/4 in |
| Overall Width | 8 in |
| Minimum Vent Pipe Diameter | 3 in |
| Maximum Vent Pipe Diameter | 6 in |
| Overall Depth | 8 7/8 in |
| Cutout Size | 2 5/8 in x 7 1/8 in |
| Item | Draft Inducer |
| Construction Material | Aluminized Steel Housing and Blower Wheel |
| Amps | 0.43 |
| Remarks | View Catalog Page for Selection Criteria |
| Application | Boilers, Furnaces, Water Heaters |
| Watts | 35 W |
| Heater Btu Input @ 270 (F) | 69,000 105,000 111,000 100,000 |
| CFM @ 270 Deg. (F) | 48727268 |
| CFM @ 530 Deg. (F) | 33483913 |
| Heater Btu Input @ 390 (F) | 72,000 109,000 104,000 34,000 |
| SP @ 270 Deg. (F) | 0.0340.0420.0430.041 |
| CFM @ 390 Deg. (F) | 36555217 |
| Heater Btu Input @ 530 (F) | 58,000 92,000 74,000 25,000 |
| SP @ 530 Deg. (F) | 0.0480.0570.0520.035 |
| CFM @ 0.500-In. SP | N/A. |
| SP @ 390 Deg. (F) | 0.0470.0530.0520.042 |
| Frequency | 60 Hz |
| Current | 0.43 A |
| Maximum Motor Horsepower | 1/70 hp |
| Nameplate Voltage | 115V AC |
| Minimum Heat Input | 25,000 Btu (Oil/Barometric), 34,000 Btu (Gas/Barometric), 69,000 Btu (Gas/Draft Hood) |
| Maximum Heat Input | 109,000 Btu (Gas/Barometric), 111,000 Btu (Gas/Draft Hood), 92,000 Btu (Oil/Barometric) |
| Maximum Heater BTU Input for Oil Appliance | 300,000 BtuH |
| Power Consumption | 34 W |
| Housing Material | Steel |
| Maximum Heater BTU Input for Gas Appliance | 377,000 BtuH |
| For Fuel Type | Coal, Natural Gas, Oil |
| For Appliance Type | Boilers, Furnaces, Non-Condensing Chimney Vented Gas and Oil Fueled Heating Equipment, Ovens, Water Heaters |
| Maximum Static Pressure | 0 in wc |
| Airflow at Temperature | 33 cfm @ 530 Degrees F, 48 cfm @ 530 Degrees F, 39 cfm @ 530 Degrees F, 13 cfm @ 530 Degrees F, 36 cfm @ 390 Degrees F, 55 cfm @ 390 Degrees F, 52 cfm @ 390 Degrees F, 17 cfm @ 390 Degrees F, 48 cfm @ 270 Degrees F, 72 cfm @ 270 Degrees F, 72 cfm @ 270 Degrees F, 68 cfm @ 270 Degrees F |
| Blower Type | Induced Draft Blower |
Description

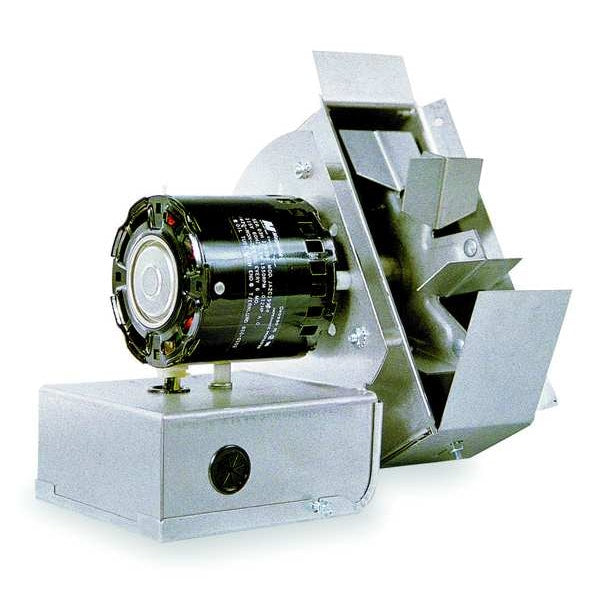

The Tjernlund Products DJ-3 is a 115-volt, 1/70 hp draft inducer motor with an aluminized steel housing and blower wheel. This in-line draft inducer creates a controlled draft to improve combustion and venting. It is used with boilers, furnaces, and water heaters, supporting heater BTU inputs ranging from 69,000 to 111,000 at 270°F.
