- Max. HP: 3 hp
- Input Voltage: 480V AC
- Output Voltage: 480V AC
- Input Phase AC: Three
- Max. Output Amps: 5.8 A
- Output Phase AC: Three
Specifications
| Part Number | DC1345D8NBA20CE1 |
| Brand | Eaton |
| Max. HP | 3 hp |
| Input Voltage | 480V AC |
| Output Voltage | 480V AC |
| Input Phase AC | Three |
| Enclosure | Open |
| Depth | 5.98 in |
| Height | 9.09 in |
| Width | 4.21 in |
| Overall Height | 9 1/8 in |
| Overall Width | 4 1/4 in |
| Overall Depth | 6 in |
| Item | Variable Frequency Drive |
| Max. Output Amps | 5.8 A |
| Output Phase AC | Three |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| For Use With | 3-Phase Inverter Duty Motor |
| Standards | IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5-1, CE, UL, cUL, RCM, Ukr SEPRO, EAC, RoHS, ISO 9001 |
| Display Type | 7-Segement |
| Protection | IP20 |
| Starting Torque | 1.75 |
| Dynamic Braking | No |
| Displays | LED Keypad |
| Adjustable Acceleration Time | 0 to 600 sec |
| Accepts Input Control Signal | Yes |
| Output Frequency Range | 0 to 500 Hz |
| Control Type | Keypad |
| Torque @ 1 Hz | 1.75 |
| Key Pad Lockout | Yes |
| Input Frequency | 50/60 Hz |
| Control Method | U/f Control, Speed Control, Sensor less Vector Control |
| Adjustable Deceleration Time | 0 to 600 sec |
| Start/Stop Control | Programmable |
| Digital Readout | Yes |
| Number of Inputs | (4) Digital Inputs, (2) Analog Inputs |
| Input Voltage Range | 380 to 480V AC |
| Enclosure Rating | NEMA 0 |
| Application | General-Purpose Microdrive, Machinery OEM Drive |
| Output Voltage Range | 480V AC |
| Torque Application | Constant Torque, Variable Torque |
| Number of Outputs | (1) Output - Analog or Digital + (1) Relay Output |
| Style | Compact |
| Output Type | Analog, Digital |
| Brake Chopper Included | Yes |
| Maximum Output Current | 5.8 A |
| Maximum Output Power | 3 hp |
| Ethernet Port Included | No |
| Series | DC1 Family |
| Input Type | Analog, Digital |
| Color | White |
Description

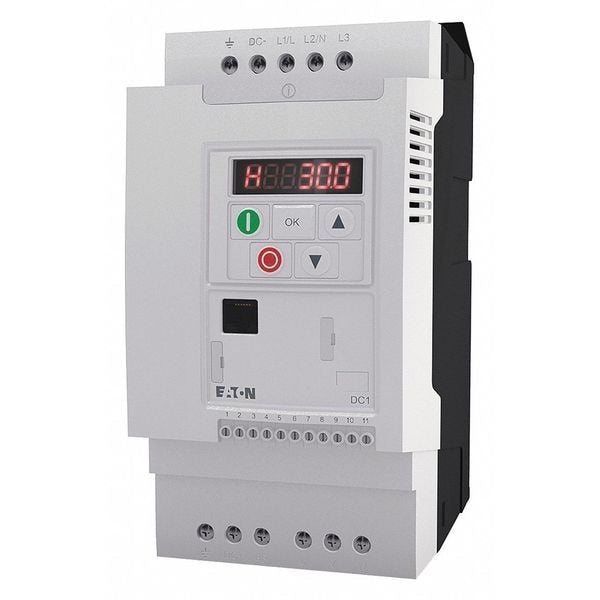

The Eaton DC1345D8NBA20CE1 is a Cutler-Hammer variable frequency drive (VFD). This type of part controls the speed of an AC motor by varying the frequency and voltage of its power supply. It is a three-phase, 480V AC input and output unit rated for 3 HP with a maximum output of 5.8 amps, housed in an open enclosure.
