- Pressure Connection Type: 1/4" MNPT
- Housing Material: Brass
- Overall Diameter: 6 in
- Sample Line Connection Size: 1/4 in
- Mounting Hole Diameter: 7/16 in
- Wetted Materials: Brass, 403 SS, or 316 SS.
Specifications
| Part Number | DA-7031-153-9 |
| Brand | Dwyer Instruments |
| Action | Standard |
| Contact Form | SPDT |
| Pressure Connection Type | 1/4" MNPT |
| Range | 10 to 300 psi |
| Housing Material | Brass |
| Overall Diameter | 6 in |
| Sample Line Connection Size | 1/4 in |
| Mounting Hole Diameter | 7/16 in |
| Item | Pressure Switch |
| Factory On Setting | 300 psig |
| Factory Off Setting | 10 psi |
| Standards | CSA, FM, UL Listed |
| Electrical Connection | Screw Terminals |
| Features | Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators; On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location; Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling; External switch setpoint adjustments reduces set-up time; Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs; UL listed, CSA approved many models FM approved to support rigorous process applications and regulations; General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses |
| Application | Air Compressor Control, Pump Control |
| Wetted Materials | Brass, 403 SS, or 316 SS. |
| Process Connection | General purpose and weatherproof: 1/4" male NPT; 1/2" male NPT on range 15S and 16S. Explosion-proof: 1/2" male NPT and 1/4" female NPT. |
| Mounting Orientation | Vertical |
| Pressure Setpoint Type | Adjustable |
| Maximum Operating Temperature | 180 Degrees F |
| Maximum Pressure Rating | 300 psig |
| Mounting Hole Center to Center Distance | 7 in |
| Product Type | Pressure Switch |
| Sample Line Connector Type | NPT |
| Maximum Pressure Setting | 300 psig |
| Minimum Pressure Setting | 10 psig |
| Pressure Type | Positive |
| Switch Type | SPST mercury switch, SPDT mercury switch, SPDT snap switch. |
| Pressure Limit | Maximum pressure of the operating range. |
| Conduit Connection | General purpose: 1/2" hole for conduit hub. Weatherproof: 1/2" conduit hub. Explosion-proof: 3/4" female NPT. |
| Agency Approvals | CSA, FM, UL. (Consult factory for FM approval models.) |
| Repeatability | ±1% of full operating range, ±1.5% on DS-7300 models. |
| Set Point Adjustment | Thumbscrew. |
Description

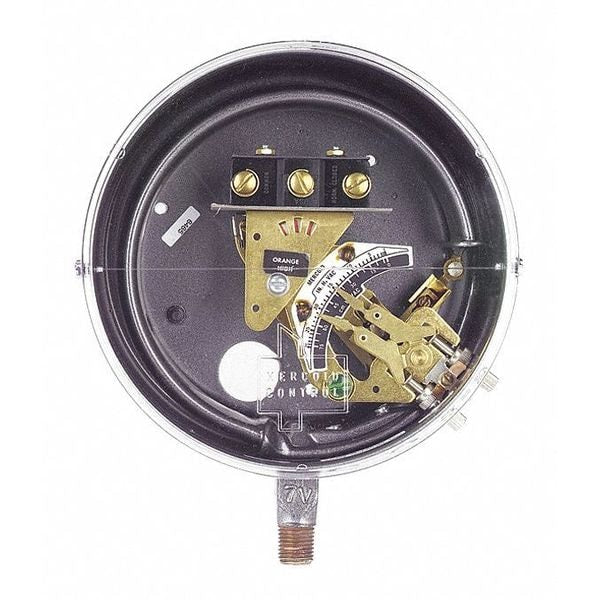

The Dwyer Instruments DA-7031-153-9 is a standard pressure switch with a 10 to 300 psi range and a brass housing. This type of switch opens or closes an electrical circuit in response to a preset pressure level, providing on/off control for equipment. It is used for air compressor control and pump control applications.
