- Nameplate RPM: 1,075
- Full Load Amps: 4.0-2.7-2.0 A
- Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
- Stud Size: #8-32
- Phase: Single
- HP: 1/2, 1/3, 1/4
Specifications
| Part Number | D703 |
| Brand | Fasco |
| Nameplate RPM | 1,075 |
| Motor Mounting Position | All Angle |
| Mounting Stud Length | 9/16 in |
| Full Load Amps | 4.0-2.7-2.0 A |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Shaft Length | 6 in |
| Shaft Dia. | 1/2 in |
| Stud Size | #8-32 |
| Resilient Ring Dia. | 2 1/2 in |
| Length Less Shaft | 4 5/8 in |
| Bolt Circle Dia. | 5 1/4 in |
| Body Dia. | 5 5/8 in |
| Manufacturers Warranty Length | 1 yr |
| Overall Length | 11 5/8 in |
| Lead Length | 26 in |
| Item | Direct Drive Blower Motor |
| Phase | Single |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/2, 1/3, 1/4 |
| Motor Design | Permanent Split Capacitor |
| Frame | 48 |
| Duty | Continuous |
| Nominal Efficiency | 0.59 % |
| Mounting Stud Pattern | 3-11/16 in x 3-11/16 in |
| Voltage | 208-230V AC |
| Mounting Stud Location | 4/Shaft End |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Capacitor Required | 2MDV6 |
| Motor Thermal Protection | Auto |
| RPM Range | 1,001-1,100 |
| Motor Mounting Type | Ring/Stud |
| No. of Speeds | 3 |
| Motor Bearings | Sleeve |
| Motor Application | HVAC/R |
| Ring to Ring Center | 5 13/16 in |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Standards | CSA Certified, UL Recognized |
| Motor Shaft Design | Double-Flat |
| Hz | 60 Hz |
| Weight | 17 lb |
| Usable @ 200V | No |
| Number of Shafts | 1 |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| Motor Frame Material | Steel |
Description

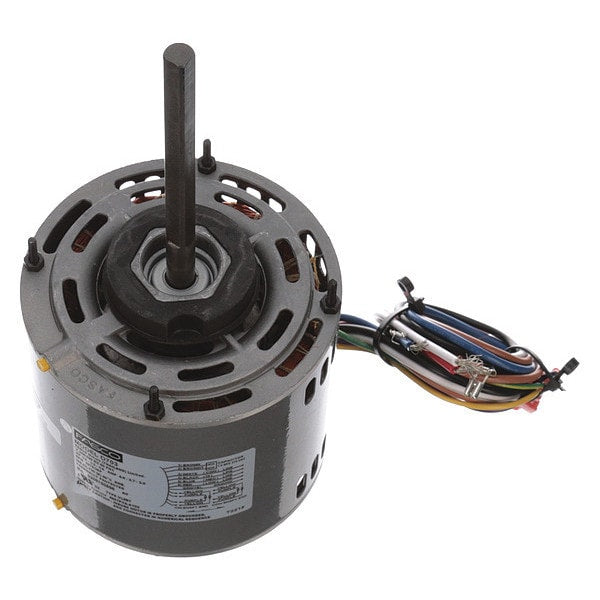

The Fasco D703 is a direct drive blower motor with a 1/2, 1/3, or 1/4 HP rating. It operates at 1,075 RPM on 208-230V AC, drawing 4.0-2.7-2.0 full load amps, and features an open dripproof enclosure.
