D5CM1K14 U.S. Motors 5 hp Air Compressor Motor, 208-230V AC, 3450 RPM

SKU: D5CM1K14
Your Price:
$592.88
Shipping: $299.00 freight, curbside delivery with liftgate. Dispatch timing varies by product and supplier.US only. The exact cost is confirmed at checkout.
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Guaranteed

    Quality

    Quality Guaranteed
  • Image of Fast Shipping

    Free shipping

    Fast Shipping
  • Image of Great Value

    Fast Shipping

    Great Value
  • Image of Secure Online Ordering

    Free shipping

    Secure Online Ordering
  • Phase: Single
  • HP: 5 hp
  • Voltage: 208-230V AC
  • RPM Range: 3,001-3,600
  • Full Load Amps: 22.0 A
  • Nameplate RPM: 3,450 RPM

Specifications

Part Number D5CM1K14
Brand U.S. Motors
Phase Single
HP 5 hp
Voltage 208-230V AC
Overall Length 14 7/16 in
RPM Range 3,001-3,600
Length Less Shaft 12 1/16 in
Shaft Length 2 3/8 in
Shaft Dia. 7/8 in
Item Air Compressor Motor
Motor Bearings Ball
Motor Mounting Type Rigid Base
Full Load Amps 22.0 A
Motor Service Factor 1
Nameplate RPM 3,450 RPM
Motor Enclosure Design Open Drip Proof
Motor Application Air Compressor
Motor Thermal Protection Manual
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Frame 56HZ
Motor Shaft Design Keyed
Motor Shaft Rotation CCWSE
Hz 60 Hz
Weight 46 lb
Duty Cycle Continuous
No. of Speeds 1
Motor Design Capacitor-Start/Run
Usable @ 208V Usable at 208V
Motor Frame Material Steel
Usable @ 200V Not Usable at 200V
Motor Mounting Position Horizontal

Description

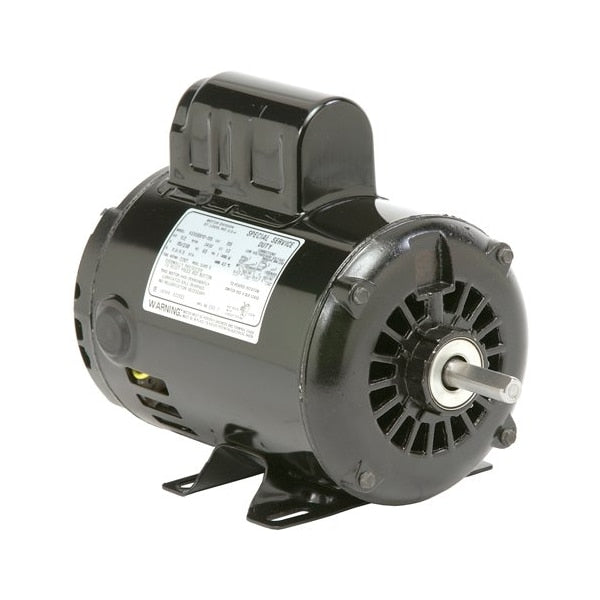

The U.S. Motors D5CM1K14 is a 5 hp single-phase air compressor motor. It operates at 208-230V AC with a nameplate RPM of 3,450 and a full load amperage of 22.0 A. This rigid base mounted motor is designed to power an air compressor.
