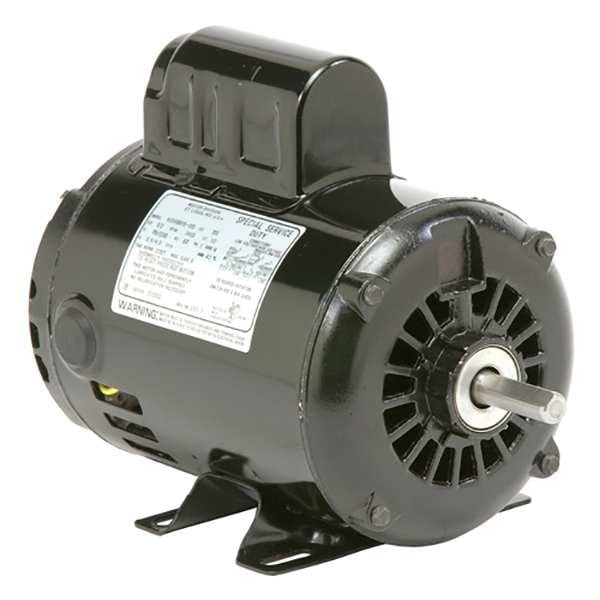

D5C2K U.S. Motors 5 hp 230V single-phase air compressor motor

SKU: D5C2K
Your Price:
$670.58
Shipping: $299.00 freight, curbside delivery with liftgate. Dispatch timing varies by product and supplier.US only. The exact cost is confirmed at checkout.
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Guaranteed

    Quality

    Quality Guaranteed
  • Image of Fast Shipping

    Free shipping

    Fast Shipping
  • Image of Great Value

    Fast Shipping

    Great Value
  • Image of Secure Online Ordering

    Free shipping

    Secure Online Ordering
  • Phase: Single
  • HP: 5 hp
  • Voltage: 230V AC
  • Full Load Amps: 23.5 A
  • Hz: 60 Hz
  • Nameplate RPM: 1,740 RPM

Specifications

Part Number D5C2K
Brand U.S. Motors
Phase Single
HP 5 hp
Voltage 230V AC
Overall Length 16 5/16 in
Motor Shaft Design Keyed
Shaft Length 2 7/8 in
Length Less Shaft 13 7/16 in
Shaft Dia. 1 1/8 in
Motor Enclosure Design Open Drip Proof
Frame 184T
Motor Shaft Rotation CCWSE
Motor Thermal Protection Manual
Motor Mounting Type Rigid Base
Weight 75 lb
Ins. Class F
Motor Design Capacitor-Start/Run
Full Load Amps 23.5 A
Hz 60 Hz
Item Air Compressor Motor
Nameplate RPM 1,740 RPM
Motor Bearings Ball
RPM Range 1,701-1,800
Motor Service Factor 1.15
No. of Speeds 1
Motor Application Air Compressor
Duty Cycle Intermittent
Max. Ambient Temp. 40 Degrees C
Usable @ 200V Not Usable at 200V
Motor Frame Material Steel
Motor Mounting Position Horizontal
Usable @ 208V Usable at 208V

Description

The D5C2K from U.S. Motors is a 5 hp, single-phase air compressor motor operating at 230V AC and 60 Hz. This open drip proof, rigid base motor draws 23.5 full load amps and is designed to power an air compressor.
