- Voltage: 115V AC
- Nameplate RPM: 1,550
- HP: 1/20
- Stud Size: #8-32
- RPM Range: 1,501-1,600
- Max. Ambient Temp.: 40 Degrees C
Specifications
| Part Number | D473 |
| Brand | Fasco |
| Voltage | 115V AC |
| Nameplate RPM | 1,550 |
| Motor Enclosure Design | Open Air-Over |
| Number of Speeds | 1 |
| HP | 1/20 |
| Body Dia. | 3 5/16 in |
| Shaft Length | 2 5/8 in |
| Length Less Shaft | 5 1/16 in |
| Shaft Dia. | 5/16 in |
| Cord Length | 34 in |
| Stud Size | #8-32 |
| Lead Length | 33 in |
| Bolt Circle Dia. | 2 7/8 in |
| Overall Length | 7 3/8 in |
| RPM Range | 1,501-1,600 |
| Motor Mounting Type | Ring/Stud |
| Motor Design | Shaded Pole |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Mounting Stud Location | 4/Shaft End |
| Item | HVAC Motor |
| Motor Shaft Rotation | CCWSE |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Number of Shafts | 1 |
| Phase | Single |
| Motor Shaft Design | Flat |
| Application | General Application |
| Frame | 3.3 |
| Standards | CSA Certified, UL Recognized |
| Hz | 60 Hz |
| Full Load Amps | 2 A |
| Motor Service Factor | 1 |
| Stud/Base Mtg. Pattern | 2-27/32 in x 90 Degrees |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Sub Application | Refrigerator/Freezer |
| Duty | Continuous |
| Motor Thermal Protection | Auto |
| No. of Speeds | 1 |
| Capacitor Required | No |
| Motor Frame Material | Steel |
| Usable @ 200V | No |
| Mounting Holes | (4) #8-32 |
| Usable @ 208V | No |
| Weight | 5 lb |
| Mounting | Stud |
Description

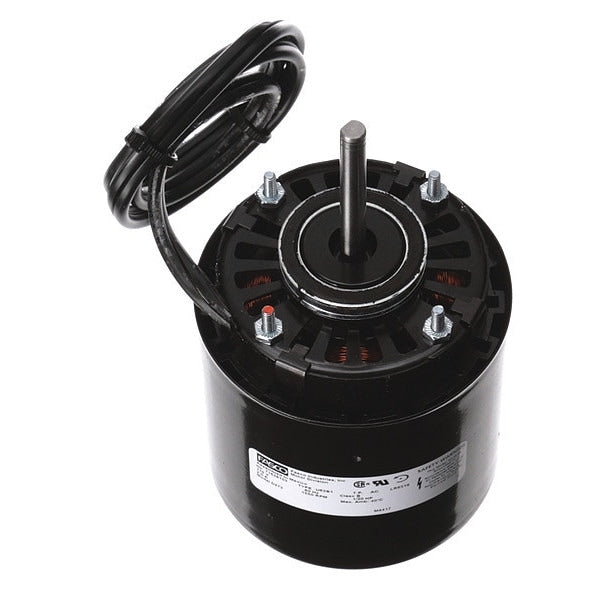

The Fasco D473 is an HVAC motor with 1/20 HP, 115V AC, and a nameplate RPM of 1,550. As an open air-over (OAO) motor, it relies on airflow from the equipment it drives for cooling.
