- RPM Range: 1,701-1,800
- Full Load Amps: 11.3 A
- Phase: Single
- HP: 3/4 hp
- Hz: 60 Hz
- Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Specifications
| Part Number | D34B2N9 |
| Brand | U.S. Motors |
| RPM Range | 1,701-1,800 |
| No. of Speeds | 1 |
| CC Number | CC030A |
| Full Load Amps | 11.3 A |
| Shaft Dia. | 5/8 in |
| Length Less Shaft | 9 7/16 in |
| Manufacturers Warranty Length | 2 yr |
| Overall Length | 11 5/16 in |
| Shaft Length | 1 7/8 in |
| Item | General Purpose Motor |
| Motor Shaft Rotation | CW/CCW |
| Motor Service Factor | 1.25 |
| Motor Mounting Type | Cradle Base |
| Phase | Single |
| Motor Enclosure Design | Open Drip Proof |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| HP | 3/4 hp |
| Inverter Rated | Not Inverter Rated |
| Hz | 60 Hz |
| Duty Cycle | Continuous |
| Motor Design | Split-Phase |
| Frame | 56 |
| Duty | Continuous |
| Motor Application | General Purpose |
| Ins. Class | B |
| Weight | 23 lb |
| Motor Thermal Protection | None |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Usable @ 208V | Not Usable at 208V |
| Nominal Efficiency | 67.7 % |
| Motor Frame Material | Steel |
| RPM Group | 1701-1800 |
| Usable @ 200V | Not Usable at 200V |
| Voltage | 115V AC |
| Nameplate RPM | 1,725 RPM |
| Standards | CSA Certified, UL Recognized |
Description

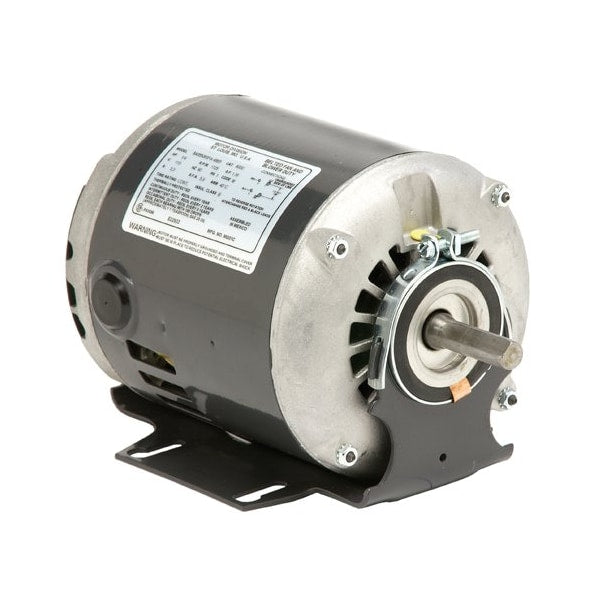

The U.S. Motors D34B2N9 is a 3/4 hp general purpose motor in a 56 frame with an open drip-proof enclosure. This split-phase motor operates at 1,725 RPM on 115V AC, drawing 11.3 full load amps at 60 Hz. It features a cradle base mounting configuration.
