- Voltage: 115V AC
- Nameplate RPM: 3,000
- HP: 1/50
- Stud Size: #8-32
- RPM Range: 1,801-3,000
- Full Load Amps: 0.92 A
Specifications
| Part Number | D228 |
| Brand | Fasco |
| Voltage | 115V AC |
| Nameplate RPM | 3,000 |
| Motor Enclosure Design | Open Air-Over |
| Number of Speeds | 1 |
| HP | 1/50 |
| Length Less Shaft | 3 7/16 in |
| Body Dia. | 3 5/16 in |
| Shaft Length | 2 in |
| Shaft Dia. | 1/4 in |
| Overall Length | 5 in |
| Stud Size | #8-32 |
| Lead Length | 18 in |
| Bolt Circle Dia. | 2 7/8 in |
| RPM Range | 1,801-3,000 |
| Motor Shaft Design | Flat |
| Mounting Stud Location | 4/Both Ends |
| Standards | CSA Certified, UL Recognized |
| Item | Direct Drive Blower Motor |
| Motor Bearings | Sleeve |
| Full Load Amps | 0.92 A |
| Motor Sub Application | Direct Drive Fan/Blower |
| Hz | 60 Hz |
| Duty | Continuous |
| Motor Application | HVAC/R |
| Motor Service Factor | 1 |
| Stud/Base Mtg. Pattern | 2-7/8 in x 2-7/8 in |
| Motor Shaft Rotation | CWSE |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Application | HVAC/R |
| Phase | Single |
| Frame | 3.3 |
| Motor Mounting Type | Ring/Stud |
| Motor Design | Shaded Pole |
| No. of Speeds | 1 |
| Capacitor Required | No |
| Usable @ 208V | No |
| Motor Frame Material | Steel |
| Mounting Holes | (8) #8-32 |
| Weight | 2 lb |
| Motor Mounting Position | All Angle |
| Mounting Stud Pattern | 2 7/8 in x 2 7/8 in |
| Usable @ 200V | No |
| Mounting | Stud |
Description

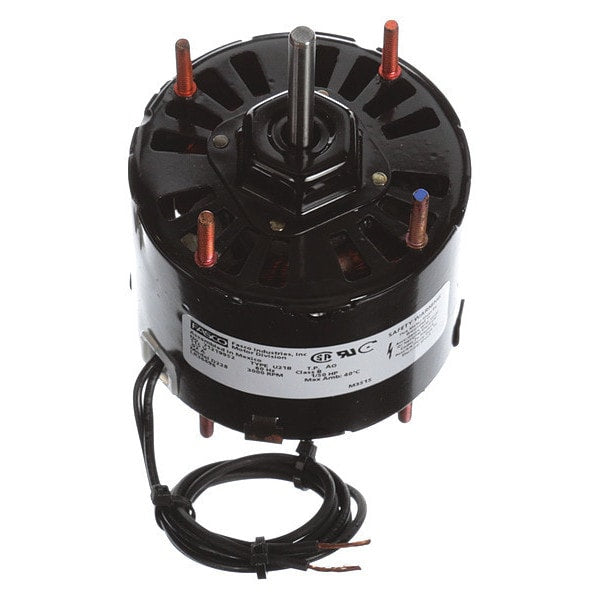

The Fasco D228 is a 1/50 HP direct drive blower motor. This open air-over motor operates at 3,000 RPM on 115V AC with a full load amp rating of 0.92 A. It is CSA Certified and UL Recognized.
