- Voltage: 230V AC
- Nameplate RPM: 1,500
- HP: 1/20
- Stud Size: #8-32
- RPM Range: 1,401-1,500
- Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Specifications
| Part Number | D189 |
| Brand | Fasco |
| Voltage | 230V AC |
| Nameplate RPM | 1,500 |
| Motor Enclosure Design | Open Air-Over |
| Number of Speeds | 1 |
| HP | 1/20 |
| Shaft Length | 2 1/4 in |
| Body Dia. | 3 5/16 in |
| Length Less Shaft | 3 5/16 in |
| Shaft Dia. | 5/16 in |
| Overall Length | 5 7/16 in |
| Bolt Circle Dia. | 2 7/8 in |
| Stud Size | #8-32 |
| Lead Length | 12 in |
| RPM Range | 1,401-1,500 |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC |
| Number of Shafts | 1 |
| Motor Shaft Rotation | CCWSE |
| Mounting Stud Location | 4/Both Ends |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Mounting Type | Ring/Stud |
| Ins. Class | B |
| Motor Application | HVAC/R |
| Full Load Amps | 0.9 A |
| No. of Speeds | 1 |
| Motor Design | Shaded Pole |
| Max. Ambient Temp. | 40 Degrees C |
| Application | HVAC/R |
| Motor Service Factor | 1 |
| Stud/Base Mtg. Pattern | 2-7/8 in x 2-7/8 in |
| Motor Bearings | Sleeve |
| Item | Direct Drive Blower Motor |
| Frame | 3.3 |
| Motor Thermal Protection | Auto |
| Phase | Single |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Duty | Continuous |
| Standards | CSA Certified, UL Recognized |
| Hz | 60 Hz |
| Motor Shaft Design | Flat |
| Capacitor Required | No |
| Usable @ 208V | No |
| Weight | 3 lb |
| Motor Frame Material | Steel |
| Usable @ 200V | No |
| Motor Mounting Position | All Angle |
| Mounting Holes | (8) #8-32 |
| Mounting Stud Pattern | 2 7/8 in x 2 7/8 in |
| Mounting | Stud |
Description

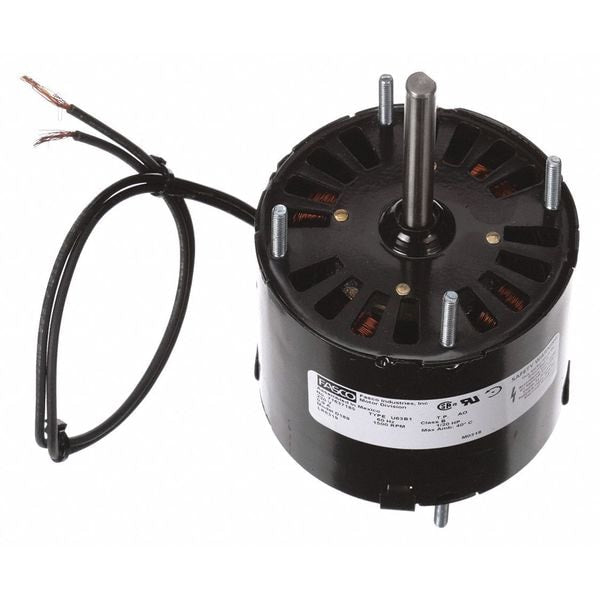

The Fasco D189 is an open air-over direct drive fan and blower motor rated at 1/20 HP with a nameplate speed of 1,500 RPM and 230V AC operation. This motor is designed to power fans and blowers in HVAC equipment, using an open air-over enclosure to cool itself via the airflow it generates. It features a ring/stud mounting configuration and is compatible with a wide range of voltages, including 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, and 277/230V AC.
