- Voltage: 115/230V AC
- Voltage Compatibility: 115/230V AC
- Nameplate RPM: 1,050
- Phase: Single
- Motor Frame Material: Steel
- HP: 1/10
Specifications
| Part Number | D0608 |
| Brand | Fasco |
| Voltage | 115/230V AC |
| Voltage Compatibility | 115/230V AC |
| Motor Service Factor | 1 |
| Usable @ 208V | No |
| Motor Application | HVAC/R |
| Shaft Dia. | 3/8 in |
| Lead Length | 30 in |
| Bolt Circle Dia. | 4 5/8 in |
| Shaft Length | 3 1/4 in |
| Body Dia. | 5 in |
| Overall Length | 8 7/16 in |
| Length Less Shaft | 5 3/16 in |
| Item | Refrigeration Motor |
| Motor Sub Application | Refrigeration |
| Nameplate RPM | 1,050 |
| Motor Thermal Protection | Auto |
| No. of Speeds | 1 |
| Usable @ 200V | No |
| Phase | Single |
| Motor Bearings | Ball |
| Ins. Class | B |
| Standards | CSA, UL |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring |
| Includes | Resilient Rings |
| Motor Enclosure Design | Open Air-Over |
| Number of Shafts | 1 |
| Motor Shaft Design | Flat |
| HP | 1/10 |
| Hz | 60 Hz |
| Mounting Stud Location | Shaft End |
| Motor Design | Permanent Split Capacitor |
| Frame | 42 |
| Capacitor Required | Included |
| Duty Cycle | Continuous |
| Weight | 8 lb |
| Motor Shaft Rotation | CW/CCW |
| Full Load Amps | 2.4/1.3 A |
| Max. Ambient Temp. | 104 Degrees F |
| RPM Range | 1,001-1,100 |
Description

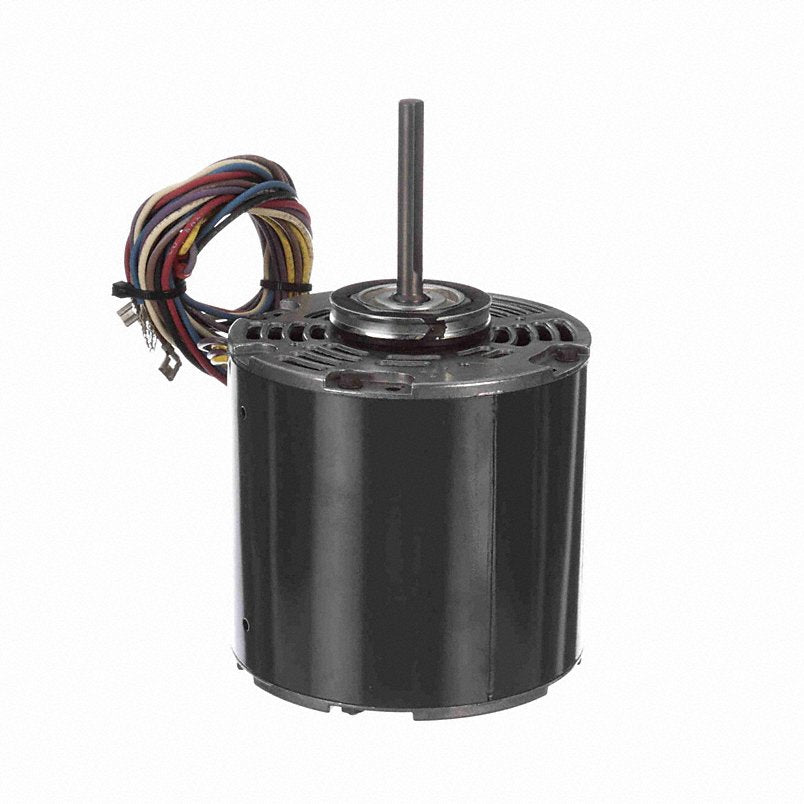

The Fasco D0608 is a single-phase refrigeration motor rated at 1/10 hp with a nameplate speed of 1,050 RPM and dual voltage compatibility of 115/230V AC. This motor is designed to power fans or compressors in refrigeration systems and is CSA and UL certified.
