- Input Voltage: 120/240V AC
- NEMA Rating: 3R
- Amps: 20 A
- HP @ 120V: 1 hp
- HP @ 240V: 2 hp
- Voltage: 240V AC
Specifications
| Part Number | CT2000 |
| Brand | Intermatic |
| Input Voltage | 120/240V AC |
| Max. Time Setting | 3 hr 52 min |
| Min. Time Setting | 1 sec |
| NEMA Rating | 3R |
| Contact Form | SPST |
| Depth | 2.8 in |
| Length | 5 3/4 in |
| Width | 3 1/2 in |
| Overall Width | 3 1/2 in |
| Overall Height | 6 5/8 in |
| Overall Depth | 3 5/16 in |
| Length (Straight Wireway) | 5 3/4 in |
| Height | 6.625 in |
| Product Height | 6.625 |
| Product Width | 3.5 |
| Product Depth | 3.3125 |
| Item | Electromechanical Cycle Timer |
| Amps | 20 A |
| HP @ 120V | 1 hp |
| Contact Type | SPST |
| Mounting | Surface |
| HP @ 240V | 2 hp |
| Number of Poles | 1 |
| Standards | cCSAus |
| Features | Permanent Manual Overrides, Temporary Manual Overrides |
| Application | Machinery, Irrigation |
| Enclosure Type | Outdoor type 3R metal |
| Product Type | Cycle Timer |
| Voltage | 240V AC |
| Switch Type | SPST |
| Wiring Option | Wire leads |
| Ballast Fluorescent | 10 A, 277 VAC, 60 Hz |
| General Purpose | 20 A, 240 VAC, 60 Hz |
| Applications | Agriculture Feeders Greenhouse Misting Control |
| Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC, 60 Hz |
| Pilot Duty (NO) | 470 VA, 240 VAC, 60 Hz |
| Cycle Duration | 1 min, 1-Hour, 10 min: 30 min, 3 min, 30 sec, 4 hours, 5 min |
| Resistive Load Ratings Ranges | 20 A, 28 VDC, 120/240 VAC, 60 Hz |
| Operating Temperature Min (°F) | -14 |
| Tungsten Incandescent | 5 A, 240 VAC, 60 Hz |
| Operating Temperature Max (°F) | 140 |
| Operating Temperature - Minimum | -14 Degrees F |
| Current Rating - Maximum | 20 A |
| Horsepower @ 120V - Maximum | 1 hp |
| Number of Trippers - Maximum | 120 |
| NEMA Enclosure Rating | 3R |
| Time Setting - Minimum | 1 sec |
| Mounting Style | Surface |
| AC Voltage Rating | 120/240V AC |
| DC Voltage Rating | 28V DC |
| On/Off Cycles - Maximum | 60 |
| Time Setting - Maximum | 4 hr |
| Horsepower @ 240V - Maximum | 2 hp |
| Series | CT2000 |
| Body Material | Metal |
| Number of Trippers Included | 0 |
| Indoor/Outdoor Usage | Outdoor |
| Operating Temperature - Maximum | 140 Degrees F |
Description

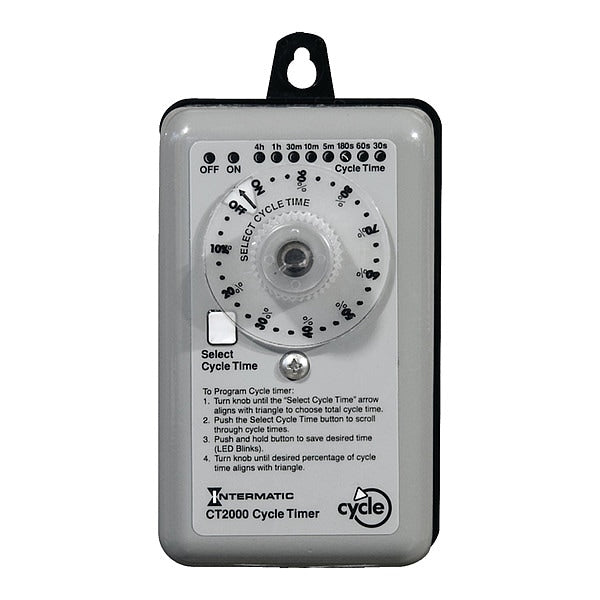

The Intermatic CT2000 is an electromechanical percentage cycle timer. This type of timer controls a connected load by cycling it on and off for a set percentage of a fixed total cycle time. It operates at 120/240V AC, is rated for 20 amps and 1 hp at 120V or 2 hp at 240V, features a SPST contact type, and carries a NEMA 3R rating and cCSAus standards.
