- Heater Voltage: 240V AC
- Overall Length: 48 in
- Mounting Dimension: 47 in
- Watts: 2,250 W
- Watt Density: 14 W/sq in
- Terminals: Parallel
Specifications
| Part Number | CSF00037 |
| Brand | Tempco |
| Item | Finned Strip Heater |
| Heater Voltage | 240V AC |
| Overall Length | 48 in |
| Mounting Dimension | 47 in |
| Watts | 2,250 W |
| Watt Density | 14 W/sq in |
| Terminals | Parallel |
| Element Width | 1 1/2 in |
| Sheath Material | 304 Stainless Steel |
| Material | Nickel Plated Steel |
| Phase | 1 |
| H x W Across Fins | 1 3/8 x 2 in |
| Max. Sheath Temp. | 1,200 Degrees F |
| Mounting Type Surface | Mount |
| Slotted Hole Length | 1/2 in |
| Slotted Hole Width | 5/16 in |
| Screw Size | 10-32 |
| Standards UL | Recognized |
| Includes Mounting | Tabs |
| UPC | 094705439654 |
Description

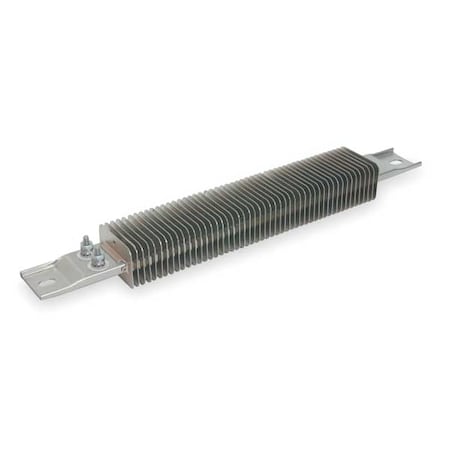

The Tempco CSF00037 is a finned strip heater with a 240V AC rating, an overall length of 48 in, and a maximum sheath temperature of 1,200 degrees F. It provides 2,250 W with a watt density of 14 W/sq in and has a 304 stainless steel sheath. The unit includes mounting tabs and has a surface mount design.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
