- Main Air Pressure (PSIG): 15 to 30 psig
- Mounting Hole Diameter: 3/16 in
- Air Inlet Size: 1/4 in
- Operating Temp. Limit (F): 40 to 120 Degrees F
- Reset Pressure Band: 0 to 10 psig
- Max. Signal Pressure (In. WC): 6
Specifications
| Part Number | CSC-3021-10 |
| Brand | Kmc Controls |
| Type | Sub Master |
| Connection Ports | Push On Fittings For 1/4 in OD Tubing |
| Color | Beige |
| Main Air Pressure (PSIG) | 15 to 30 psig |
| Setpoint Range Minimum (In. WC) | 0 to 1 |
| Mounting Hole Dia. | 3/16 in |
| Mounting Hole Diameter | 3/16 in |
| Air Inlet Size | 1/4 in |
| Item | Reset Volume Controller |
| Air Consumption | 28.8 scim |
| Setpoint Range Maximum (In. WC) | Min to 1 |
| Control Type | DA/RA |
| Operating Temp. Limit (F) | 40 to 120 Degrees F |
| Reset Pressure Band | 0 to 10 psig |
| Thermostat Required for Cooling | Direct/Reverse Acting |
| Output Sensitivity (In. WC) | 5 PSI / 0.02 in wc |
| Max. Signal Pressure (In. WC) | 6 |
| Features | DA or RA, Adjustable Min Max, Reset Start Point Factory Set at 3 psig Start |
| Accessories | HFO-0006/SSS-1000 Series Flow Sensors, 4DEA3, 4DEA4, 4DEA5, 4DEA6 |
| Includes | Mounting Bracket |
| Output Capability | 0 to Supply Pressure |
| Thermostat Required for Heating | Direct/Reverse Acting |
| Material of Construction | ABS |
| Standards | RoHS Compliant |
| Application | Variable Air Volume |
| Reset Start Point Maximum Setting | 10 psi |
| Minimum Operating Temperature | 40 Degrees F |
| Weight | 0.69 lb |
| Mounting Orientation | Horizontal, Vertical |
| Output Sensitivity | 5 psi / 0.02 in wc |
| Maximum Operating Temperature | 120 Degrees F |
| Maximum Air Pressure | 30 psi |
| Controller Type | Direct Acting, Reverse Acting, Sub Master |
| Minimum Differential Pressure Setting | 0 in wc |
| Damper Action | Normally Open or Normally Closed |
| Reset Start Point Minimum Setting | 0 psi |
| Minimum Air Pressure | 15 psi |
| Product Type | Reset Volume Controller |
| Maximum Setpoint Range | Min to 1 in wc |
| Housing Color | Beige |
| Output Pressure Capability | 0 to Supply Pressure |
| Air Inlet Type | Push-On |
| Maximum Differential Pressure Setting | 1 in wc |
| Controller Action | Direct/Reverse Acting |
| Minimum Setpoint Range Minimum | 0 to 1 in wc |
| Reset Start Point Factory Setting | 3 psi |
| Housing Material | Plastic |
| Signal Pressure - Maximum | 6 in wc |
| Series | 3000 |
Description

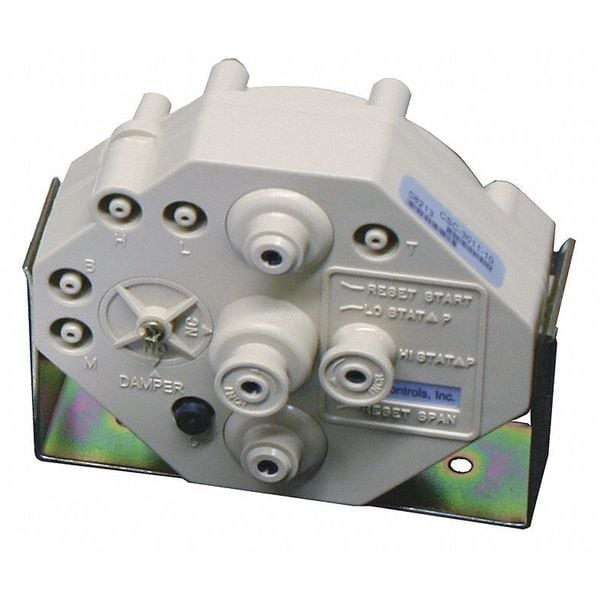

The Kmc Controls CSC-3021-10 is a Sub Master reset volume controller. This type of controller regulates the volume of air in a variable air volume (VAV) system by resetting the signal pressure based on a 0 to 10 psig reset pressure band. It operates with a main air pressure of 15 to 30 psig and a maximum signal pressure of 6 in. WC, and features push-on fittings for 1/4 in OD tubing.
