- Full Load Amps: 27 A
- NEMA Contactor Size: 1
- NEMA Size: 1
- Size: 1
- Frame Size: D
- Mounting Hole Diameter: 0.25 in
Specifications
| Part Number | CN15DN3AB |
| Brand | Eaton |
| Action | Non-Reversing |
| Full Load Amps | 27 A |
| Number of Poles | 3 |
| NEMA Contactor Size | 1 |
| Reversing | No |
| Height | 3.4 in |
| Width | 4.8 in |
| Depth | 5.6 in |
| NEMA Size | 1 |
| Size | 1 |
| Product Height | 5.05 in |
| Product Width | 2.56 in |
| Product Length/Depth | 4.44 in |
| Overall Depth | 4.44 in |
| Mounting Hole Distance - Width | 2 in |
| Mounting Hole Distance - Height | 4.5 in |
| Frame Size | D |
| Mounting Hole Diameter | 0.25 in |
| Overall Height | 5.05 in |
| Overall Width | 2.56 in |
| Item | Magnetic Contactor |
| Coil Volts | 120V AC |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| Frame / Series / Class / Code | Series Freedom, Code A, Frame 180mm |
| Standards | CSA, UL Listed |
| Series | Freedom |
| Amperage Rating | 27A |
| HP rating - max | 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V |
| Phase | Three |
| Certifications | CSA Certified |
| Product Name | Eaton Freedom NEMA motor control contactor |
| Minimum Operating Temperature | -4 Degrees F |
| Mounting Style | Panel |
| Maximum Operating Temperature | 149 Degrees F |
| Reversing Capability | Non-Reversing |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 600V AC |
| Coil Voltage | 110/120V AC |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| Horsepower @ Three Phase - 208V AC | 7 1/2 hp |
| NEMA Enclosure Rating | No Enclosure |
| Contactor Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 7 1/2 hp |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Postion | Horizontal, Vertical |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Response Time | 20 msec |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Includes Auxiliary Contacts | Yes |
| Full Load Current - Inductive | 27 A |
| Embedded Surge Suppressor | No |
| Electrical Operating Durability | 200,000 (AC-4), 500,000 (AC-3) |
| Terminal Connection Type | Screw Terminals |
Description

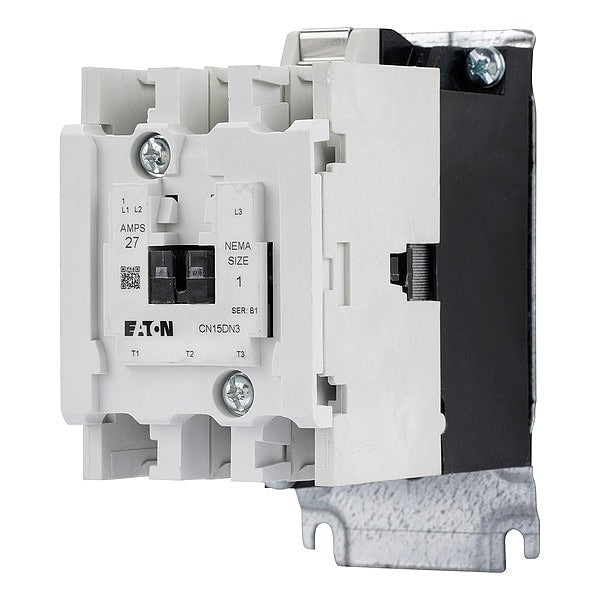

The Eaton CN15DN3AB is a Cutler-Hammer 120VAC non-reversing magnetic contactor, a 3-pole NEMA Size 1 device rated at 27 full-load amps. As a magnetic contactor, it electrically opens and closes power circuits to control equipment. It is rated for 2 hp at 120V single-phase, 3 hp at 240V single-phase, 7 1/2 hp at 208V three-phase, and 10 hp at 575V three-phase.
