- Watts: 12,000 W
- Sheath Material: Incoloy(R) 800
- Screw Plug Material: Stainless Steel
- Watt Density: 48 W/sq in
- Flange Size: 3 in
- Heater Voltage: 240V AC
Specifications
| Part Number | CHF02341 |
| Brand | Tempco |
| Item | Circulation Heater |
| Watts | 12,000 W |
| Sheath Material | Incoloy(R) 800 |
| Screw Plug Material | Stainless Steel |
| Watt Density | 48 W/sq in |
| Flange Size | 3 in |
| Heater Voltage | 240V AC |
| Phase | 3 |
| Overall Length | 45 in |
| Control Range | 60 Degrees to 250 Degrees F |
| Enclosure Type | NEMA 1 |
| Min. Immersion Depth | 44 5/8 in |
| Flange Material | Steel |
| Special Information | Optimum Operating Efficiency and Performance |
| Units | Self-Contained Heating |
| For Use With | Air, Water |
| Includes | Tank Mounted Double Pole Thermostat |
Description

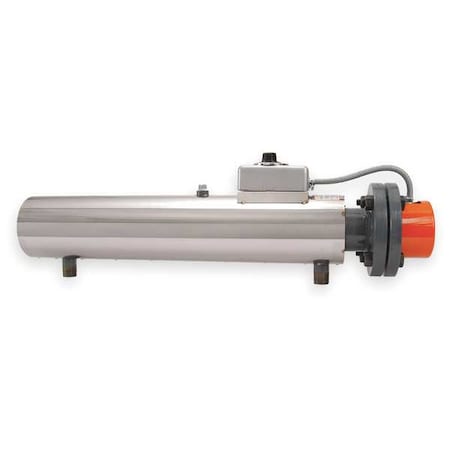

The Tempco CHF02341 is a circulation heater with an overall length of 45 inches. It operates at 12,000 watts and 240V AC across three phases, with a watt density of 48 W/sq in. The unit has an Incoloy 800 sheath, a stainless steel screw plug, a 3-inch steel flange, and a NEMA 1 enclosure. It includes a tank mounted double pole thermostat with a control range of 60 degrees to 250 degrees F and is for use with air or water.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
