- Actuator Style: Single Vane
- Maximum Output Torque: 37.6 N-m
- Rotation Angle: 270 Degrees
- Bore Diameter: 80 mm
- Maximum Operating Pressure: 145 psi
- Shaft Diameter: 17 mm
Specifications
| Part Number | CDRB1BW80-270S |
| Brand | SMC |
| Item | Rotary Actuator |
| Actuator Style | Single Vane |
| Maximum Output Torque | 37.6 N-m |
| Rotation Angle | 270 Degrees |
| Bore Diameter | 80 mm |
| Maximum Operating Pressure | 145 psi |
| Shaft Diameter | 17 mm |
| Shaft Length | 53.5 mm |
| Inlet Size | 1/8 in |
| Air Inlet Type | BSPT |
| Cushion Type | Rubber Cushion |
| Magnetic | Piston Magnetic Piston |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Pressure | 21.76 psi |
| Minimum Operating Temperature | 41 Degrees F |
| Standards | RoHS Compliant |
| For Fluid Type | Air |
| UPC | 190735635896 |
Description

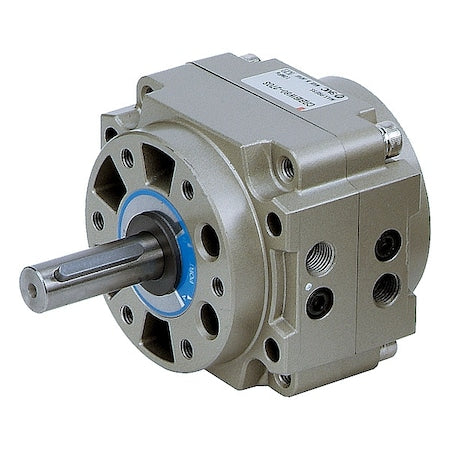

The SMC CDRB1BW80-270S is a single vane rotary actuator with a 270-degree rotation angle and a maximum output torque of 37.6 N-m. It has an 80 mm bore diameter, a 17 mm shaft diameter, and a 1/8 in BSPT air inlet. This magnetic piston actuator operates with air at pressures from 21.76 psi to 145 psi and temperatures from 41 to 140 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
