- Heater Voltage: 208VAC
- Phase: 1 or 3
- Amps: 24/18.3/12.0
- Hz: 60
- Air Temp. Rise: 42 Degrees F
- Amperage: 12A/18.3A/24A
Specifications
| Part Number | CDF558 |
| Brand | Milwaukee |
| Heater Voltage | 208VAC |
| kW | 5/3.8/2.5 |
| BtuH | 17,100/13,000/8500 |
| Phase | 1 or 3 |
| Amps | 24/18.3/12.0 |
| Length | 18-1/2" |
| Width | 15-1/2" |
| Height | 10-1/2" |
| Manufacturers Warranty Length | 1 yr Limited, 5 yr Elements |
| Overall Depth | 5 3/4 in |
| Overall Dimensions - H x W x D | 10-1/2 in x 16-7/16 in x 5-3/4 in |
| Overall Height | 10 1/2 in |
| Overall Width | 16 7/16 in |
| Item | Surface-Mount Electric Ceiling Heater |
| Mounting Type | Surface |
| Hz | 60 |
| Features | Directional Airflow, Reduced Wattage |
| Standards | cULus Listed |
| Air Temp. Rise | 42 Degrees F |
| Finish | Powder Coated |
| Watts | 5000/3800/2500 |
| Amperage | 12A/18.3A/24A |
| Voltage | 208V AC |
| Control Type | Mechanical Selector Dial |
| Thermostat Included | No |
| Wattage Output | 2500W/3800W/5000W |
| Housing Material | Steel |
| Voltage, Phase | 208V AC, 1 or 3-phase |
| Housing Finish | Powder Coated |
| Heating Method | Fan Forced |
| Frequency | 60 Hz |
| Heating Capacity | 8500/13,000/17,100 BtuH |
| Housing Color | White |
| Smart Connectivity | No Connectivity |
| Air Flow | 300 cfm |
Description

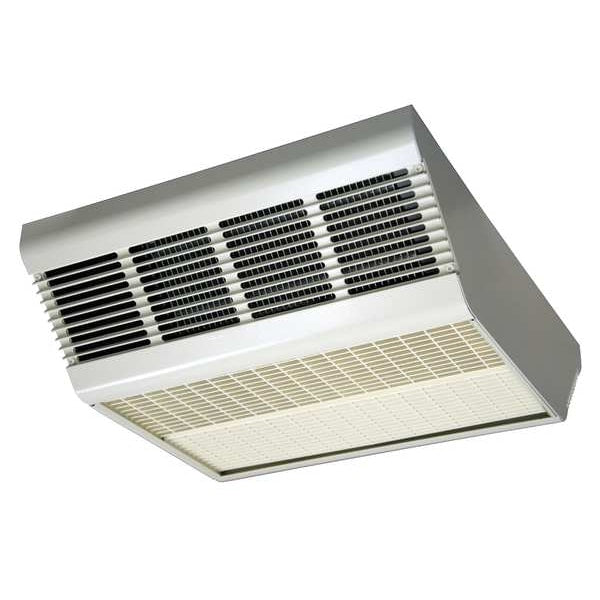

The Milwaukee CDF558 is a fan-forced electric ceiling heater designed for surface mounting. It operates at 208V AC, 60 Hz, in 1 or 3-phase configurations, with selectable outputs of 2500W, 3800W, or 5000W and corresponding heating capacities of 8500, 13,000, or 17,100 BtuH. The powder-coated steel housing measures 10-1/2 in high by 16-7/16 in wide by 5-3/4 in deep, provides 300 cfm airflow, and includes a mechanical selector dial.
