- Heater Voltage: 208VAC
- Phase: 1 or 3
- Amps: 19.2/14.2/9.6
- Hz: 60
- Air Temp. Rise: 42 Degrees F
- Voltage, Phase: 208V AC, 1 or 3-phase
Specifications
| Part Number | CDF548 |
| Brand | Milwaukee |
| Heater Voltage | 208VAC |
| kW | 4/3/2 |
| BtuH | 13,700/10,200/6800 |
| Phase | 1 or 3 |
| Amps | 19.2/14.2/9.6 |
| Length | 23-3/4" |
| Width | 23-3/4" |
| Height | 7" |
| Manufacturers Warranty Length | 2 yr Limited, 5 yr Elements |
| Overall Dimensions - L x W x D | 23 3/4 in x 23 3/4 in x 7 in |
| Overall Depth | 7 in |
| Overall Width | 23 3/4 in |
| Overall Height | 5 3/4 in |
| Overall Length | 23 3/4 in |
| Item | Electric Ceiling Panel Heater |
| Mounting Type | Recessed |
| Hz | 60 |
| Features | Directional Airflow, Reduced Wattage |
| Watts | 4000/3000/2000 |
| Standards | cULus Listed |
| Finish | Powder Coated |
| Air Temp. Rise | 42 Degrees F |
| Heater Mounting Position | Vertical Burn |
| Voltage, Phase | 208V AC, 1 or 3-phase |
| Air Flow | 300 cfm |
| Housing Color | White |
| Housing Finish | Powder Coated |
| Amperage | 19.2A/14.2A/9.6A |
| Control Type | Thermostat |
| Heating Method | Fan Forced |
| Heating Capacity | 6,800/10,200/13,700 BtuH |
| Frequency | 60 Hz |
| Thermostat Included | No |
| Wattage Output | 2000W/3000W/4000W |
| Voltage | 208V AC |
| Housing Material | Steel |
Description

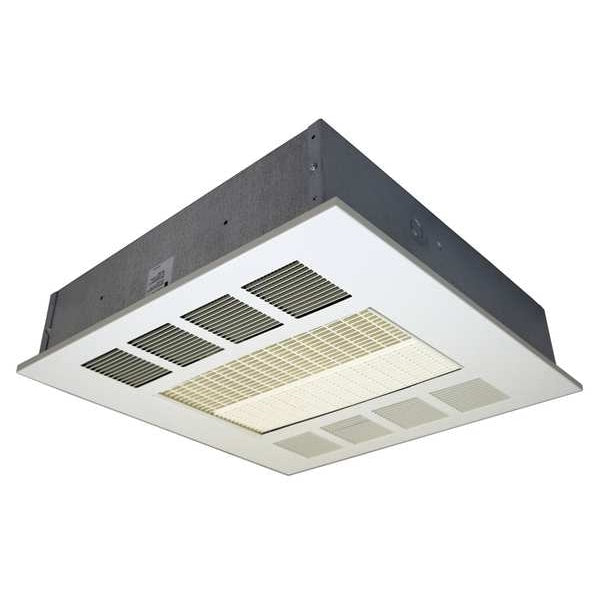

The Milwaukee CDF548 is an electric ceiling panel heater. This unit provides 13,700/10,200/6,800 BtuH of heat at 208VAC, operating on 1 or 3 phase with 60 Hz and drawing 19.2/14.2/9.6 amps. It features directional airflow and reduced wattage settings, and is designed for recessed mounting.
