- Operating Temp. Range (F): 40 to 120
- Pressure (PSI): 3 to 15
- Control Signal: Proportional
- Signal Pressure - Minimum: 3 psi
- Operating Temperature - Maximum: 120 Degrees F
- Signal Pressure - Maximum: 15 psi
Specifications
| Part Number | CCC-1002 |
| Brand | Kmc Controls |
| Operating Temp. Range (F) | 40 to 120 |
| Product Description | Proportional Control Device. Use With Pneumatic Transmitters Or Other 3 To 15 Psig Pneumatic Devices, For Controlling Valves And Actuators In HVAC Systems |
| Authority | 20 to 200 Percent Adjustable |
| Control Type | Field Selectable |
| Type | Dual Input w/Remote Set Point Adjustment, High Main Valve Capacity |
| Depth | 2 5/16 in |
| Width | 4 3/8 in |
| Height | 5 1/4 in |
| Overall Length | 5 1/4 in |
| Overall Depth | 2 5/16 in |
| Overall Width | 4 3/8 in |
| Item | Pneumatic Receiver Controller |
| Includes | 3/16 in (5 Mm) Nipples For 1/4 in (6 Mm) OD Polyethylene Tubing |
| Application | HVAC Actuators, Pneumatic Transmitters, Valve Control Sensors |
| Pressure (PSI) | 3 to 15 |
| Characteristics | ABS UL 94HB Plastic Construction, Dir/Rev Acting, Remote SP Input |
| Air Input Range (PSI) | 3 to 30 |
| Gauge | Optional |
| Reset Capability | Yes |
| Output | 3 to 15 psig |
| Air Consumption | 43.2 scim |
| Standards | RoHS |
| Control Signal | Proportional |
| Authority - Minimum | 20 % |
| Authority - Maximum | 200 % |
| Signal Pressure - Minimum | 3 psi |
| Throttling Range - Maximum | 40 % |
| Operating Temperature - Maximum | 120 Degrees F |
| Signal Pressure - Maximum | 15 psi |
| Number of Inlet Ports | 3 |
| Operating Temperature - Minimum | 40 Degrees F |
| Body Material | Plastic |
| Number of Inputs | Dual Input |
| Supply Pressure | 30 psi |
| Control Action | Direct Acting/Reverse Acting |
| Throttling Range - Minimum | 4 % |
Description

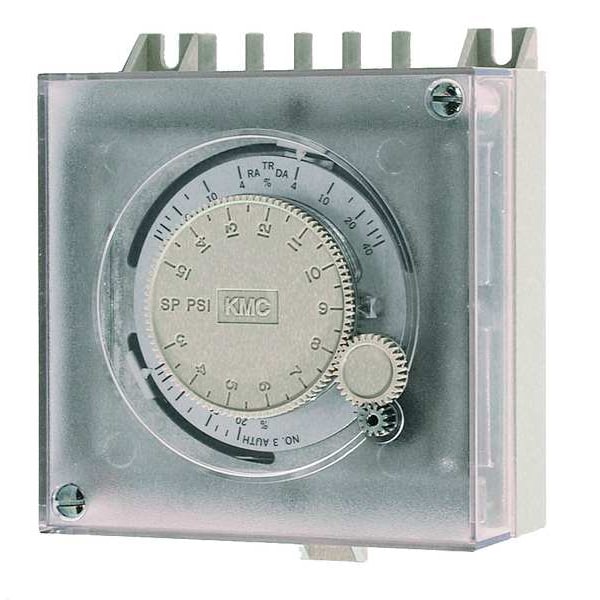

The Kmc Controls CCC-1002 is a pneumatic receiver controller with a dual input and remote set point adjustment, featuring a high main valve capacity. This type of controller receives pneumatic signals and modulates output pressure to regulate HVAC actuators, pneumatic transmitters, and valve control sensors. It operates within a 40 to 120°F temperature range and a 3 to 15 PSI pressure range, and it is RoHS compliant.
