- Maximum Voltage Rating: 690V AC
- Control Circuit Voltage Limits: drop-out 0.2 to 0.75 Uc 50°C) || operational 0.85 to 1.1 Uc 50°C)
- Ambient Air Temperature For Storage: -50-70°C
- [Uc] Control Circuit Voltage: 240 V AC 50/60 Hz
- Ambient Air Temperature For Operation: -20-50°C
- Rated Operational Voltage: <= 690 V <= 400 Hz
Specifications

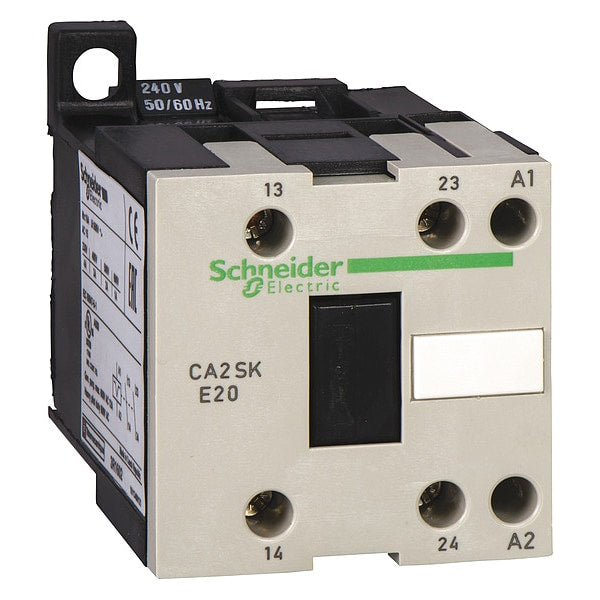

| Part Number | CA2SKE20U7 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 2NO |
| Maximum Voltage Rating | 690V AC |
| Standards | EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 |
| Depth | 68 mm |
| Width | 45 mm |
| Height | 58 mm |
| Item | IEC Control Relay |
| Utilisation Category | AC-15 || DC-13 |
| Heat Dissipation | 1.5-1.5 W |
| Hold-In Power Consumption In Va | 4.9-4.9 VA 20°C) |
| Control Circuit Voltage Limits | drop-out 0.2 to 0.75 Uc 50°C) || operational 0.85 to 1.1 Uc 50°C) |
| Mechanical Durability | 10 Mcycles |
| Device Short Name | CA2SKE |
| Ambient Air Temperature For Storage | -50-70°C |
| Range | TeSys |
| Contactor Application | control circuit |
| Product Or Component Type | control relay |
| Tightening Torque | 0.8 N.m screw clamp terminals pozidriv No 1 |
| Inrush Power In Va | 23-23 VA 20°C) |
| Pole Contact Composition | 2 NO |
| [Uc] Control Circuit Voltage | 240 V AC 50/60 Hz |
| Control Circuit Type | AC 50/60 Hz |
| Maximum Operating Rate | 1200 cyc/h |
| Protective Treatment | TC IEC 60068 |
| Operating Time | 6 to 8 ms coil de-energisation and NO opening || 7 to 14 ms coil energisation and NO closing |
| Connections - Terminals | screw clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible without cable end || screw clamp terminals 1 0.35-6 mm²flexible with cable end || screw clamp terminals 2 0.35-1.5 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible without cable end |
| Product Certifications | CB Scheme || cULus || EAC || CE || UKCA |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Associated Fuse Rating | 10 A gL VDE 0660 || 10 A gL IEC 60947 |
| Ambient Air Temperature For Operation | -20-50°C |
| Product Name | TeSys CASK |
| Mounting Style | DIN Rail and Surface |
| Number of Pins | 6 |
| Rated Operational Voltage | <= 690 V <= 400 Hz |
| IP Rating | IP2X |
| Rated Insulation Voltage | 690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14 |
| Conventional Free Air Thermal Current | 10 A 55°C |
Description
The Schneider Electric CA2SKE20U7 is an IEC control relay with a maximum voltage rating of 690V AC. This type of relay switches loads in a control circuit. It operates with a 240 V AC 50/60 Hz control circuit voltage and complies with EN/IEC 60947-5-1, UL 60947-5-1, and CSA C22.2 No 60947-5-1 standards.
