- Mounting Hole Diameter: 0.98 in
- Voltage Rating: 600VAC/250VDC
- Operating Temp. Range: -25 Degrees to 160 Degrees F
- NEMA Rating: 1, 3, 4
- Body Material: Metal
- Amps: 15 Ind./2 Ind./0.5 Res./0.25 Res
Specifications
| Part Number | BZE6-2RN7 |
| Brand | Honeywell |
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15A at 600V |
| Actuator Length - Limit Switch | 0.97 in |
| Body Height - Limit Switch | 1.75 in |
| Body Width - Limit Switch | 3.04 in |
| Width | 1.00" |
| Body Depth - Limit Switch | 1.0 in |
| Actuator Length | 0.97" |
| Height | 2.50" |
| Depth | 3.04" |
| Mounting Hole Diameter | 0.98 in |
| Overall Width | 3.04 in |
| Overall Depth | 1 in |
| Body Width | 3.04 in |
| Body Height | 1.75 in |
| Body Depth | 1 in |
| Item | Limit Switch |
| DC Contact Rating - Limit Switch | 2A at 250V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Standards | CE, CSA, UL Listed |
| Electrical Connection | Screw Terminals |
| Voltage Rating | 600VAC/250VDC |
| Wiring Entry | 1/2 in NPT |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Series | BZE6 |
| Actuator Style (Limit Switch) | Plunger |
| Number of Poles | 1 |
| Limit Switch Style | General Purpose Limit Switch |
| Basic Actuator Style (Limit Switch) | Plunger |
| Actuator Location | Top |
| IP Rating | IP66 |
| Operating Temp. Range | -25 Degrees to 160 Degrees F |
| Operating Force | 9 oz to 24 oz |
| Contact Form | 1NO/1NC |
| AC Contact Rating | 15 A @ 600 V |
| Mounting Hole - Limit Switch | (2) 0.22 in dia |
| Travel | Differential Travel 0.0004 in to 0.0020 in, Maximum Pretravel 0.078 in, Minimum Over Travel 0.219 in |
| Movement | Release Force 0.25 lb min |
| DC Contact Rating | 2 A @ 250 V |
| Body Style (Limit Switch) | Miniature |
| NEMA Rating | 1, 3, 4 |
| Mounting Hole Pattern - Limit Switch | 2 Hole Horizontal |
| Stem Thread - Limit Switch | No Stem |
| Body Material | Metal |
| Boot Sealed Actuator - Limit Switch | Yes |
| Actuator Location (Limit Switch) | Top |
| Amps | 15 Ind./2 Ind./0.5 Res./0.25 Res |
| Actuator Style | Plunger |
| Contact Form - Limit Switch | 1NC/1NO |
| Differential Travel | 0.002 in |
| Body Configuration | Non Plug-In |
| Pretravel | 0.08 in |
| Overtravel | 0.22 in |
| Mounting Style | Surface |
| Operating Temperature - Minimum | -25 Degrees F |
| Boot Sealed Actuator | Boot Included |
| Operating Force - Minimum | 9 ozf |
| NEMA Enclosure Rating | 1, 3, 4 |
| Number of Mounting Holes | 2 |
| Operating Temperature - Maximum | 160 Degrees F |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Operating Force - Maximum | 24 ozf |
Description

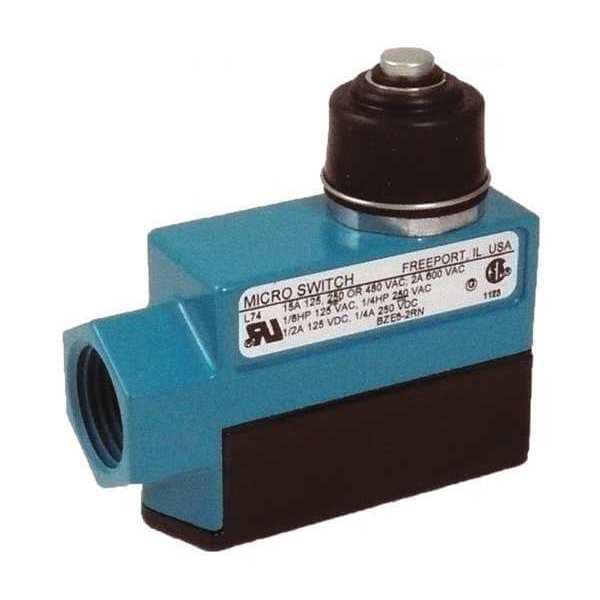

The Honeywell BZE6-2RN7 is a limit switch with a plunger actuator located on the top. This type of enclosed limit switch uses mechanical contact to detect the presence or position of an object, opening or closing an electrical circuit. It is rated for 15A at 600V AC and 2A at 250V DC, with screw terminal electrical connections, and meets CE, CSA, and UL Listing standards.
