- Housing Material: Thermoplastic, Polycarbonate
- IP Rating: IP40
- Beam Spacing: 20 mm
- Sensing Range: 0.10 to 5.00m
- Number of Beams: 12
- Sensing Height: 220 mm
Specifications
| Part Number | BWP20-12 |
| Brand | Autonics |
| Item | Photoelectric Area Sensor |
| Housing Material | Thermoplastic, Polycarbonate |
| IP Rating | IP40 |
| Beam Spacing | 20 mm |
| Sensing Range | 0.10 to 5.00m |
| Number of Beams | 12 |
| Sensing Height | 220 mm |
| Circuit Type | NPN Open Collector |
| Power Source | 12 to 24V DC |
| Cable Connection | 4 Bare Wires |
| Cable Length | 3 m |
| Light Source | Infrared LED |
| Response Time | 6 msec |
| Current Consumption | 80 mA |
| Max. Load Voltage | 30V DC |
| Max. Load Current | 100 mA |
| Output Mode | Light-On |
| Overall Height | 270 mm |
| Width | 28.6 mm |
| Depth | 22.6 mm |
Description

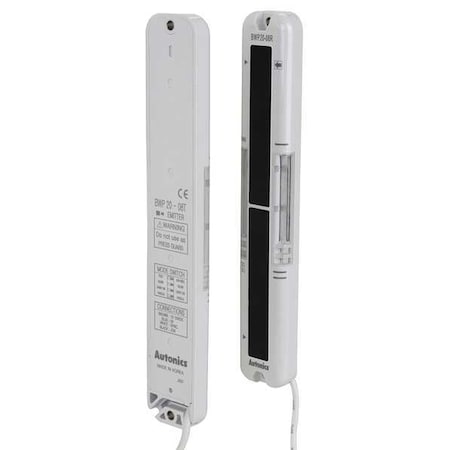

The Autonics BWP20-12 is a photoelectric area sensor with a thermoplastic polycarbonate housing and an IP40 rating. It features 12 infrared LED beams at 20 mm spacing, a sensing height of 220 mm, and a sensing range of 0.10 to 5.00 m. The sensor uses an NPN open collector output with light-on mode, operates on 12 to 24V DC, and includes a 3 m cable with 4 bare wires.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
