- HP: 1/10, 1/5, 1/8
- RPM Range: 1,001-1,100
- Nameplate RPM: 1,075
- Voltage: 115V AC
- Phase: Single
- Motor Frame Material: Rolled Steel
Specifications
| Part Number | BL6505V1A |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| HP | 1/10, 1/5, 1/8 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Voltage | 115V AC |
| Lead Length | 34 1/2 in |
| Shaft Length | 5 1/2 in |
| Length Less Shaft | 4 11/16 in |
| Body Dia. | 5 in |
| Overall Length | 10 3/16 in |
| Shaft Dia. | 1/2 in |
| Item | Fan and Blower Motor |
| Frame | 42 |
| Motor Mounting Type | Ring |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Motor Frame Material | Rolled Steel |
| Weight | 10.13 lb |
| Capacitor Required | Included |
| Mounting Holes | #10-32 |
| Motor Service Factor | 1 |
| Motor Mounting Position | Horizontal |
| Hz | 60 Hz |
| Motor Shaft Design | Flat |
| Max. Ambient Temp. | 104 Degrees F |
| Voltage Compatibility | 115V AC |
| Extended Thru-Bolts | Yes |
| Standards | CSA, UL Listed |
| Motor Shaft Rotation | CW/CCW |
| No. of Speeds | 3 |
| Includes | Shoulder Studs |
| Motor Bearings | Ball |
| Includes Blade | Fan Included |
| Full Load Amps | 1.7 A, 2.2 A, 3.3 A |
| Motor Application | Air Conditioning Motor, Air Handler, Fan Coil, Furnace Blower |
| Motor Thermal Protection | Auto |
| Motor Sub Application | Fan and Blower Motor |
| Ins. Class | B |
Description

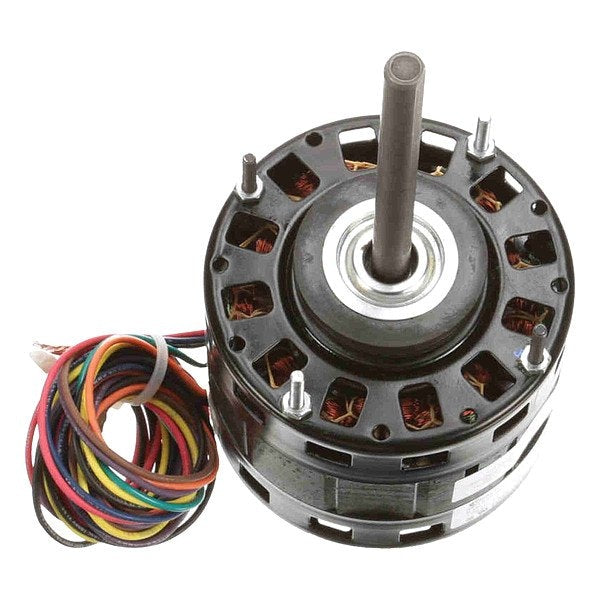

The Century BL6505V1A is a 3-speed fan and blower motor with a 42-frame, open air-over enclosure. It operates at 115V AC, single-phase, with a nameplate RPM of 1,075 and a horsepower rating selectable among 1/10, 1/5, and 1/8. This motor uses a ring mounting type.
