- Phase: Single
- Hz: 60 Hz
- Stud Size: #10-32
- Max. Ambient Temp.: 40 Degrees C
- Voltage Compatibility: 115V AC
- Nameplate RPM: 1,050
Specifications
| Part Number | BL6412 |
| Brand | Century |
| Duty | Continuous |
| Phase | Single |
| Hz | 60 Hz |
| No. of Speeds | 1 |
| Motor Thermal Protection | Auto |
| Shaft Length | 3 11/16 in |
| Resilient Ring Dia. | 2 1/2 in |
| Shaft Dia. | 1/2 in |
| Body Dia. | 5 in |
| Stud Size | #10-32 |
| Length Less Shaft | 3 13/16 in |
| Mounting Stud Length | 57/100 in |
| Lead Length | 18 in |
| Overall Length | 7 1/2 in |
| Item | Direct Drive Fan/Blower Motor |
| Ins. Class | B |
| Motor Application | Direct Drive Fan/Blower |
| Max. Ambient Temp. | 40 Degrees C |
| Frame | 42Y |
| Ring to Ring Center | 4 29/50 in |
| Voltage Compatibility | 115V AC |
| Motor Design | Shaded Pole |
| Stud Quantity | 3 |
| Nameplate RPM | 1,050 |
| Motor Service Factor | 1 |
| Standards | CSA Certified, UL Listed |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Flat |
| Motor Sub Application | Direct Drive Fan/Blower |
| Voltage | 115V AC |
| RPM Range | 1,001-1,100 |
| Motor Mounting Type | Resilient Rings |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/6 |
| Motor Bearings | Sleeve |
| Full Load Amps | 5.5 A |
| Motor Shaft Rotation | CCWLE |
| Usable @ 208V | No |
| Weight | 9 lb |
| Output Watts | 0.13 kW |
| Usable @ 200V | No |
| Motor Flange Type | Ventilated |
| Motor Frame Material | Steel |
| Inverter Rated | No |
Description

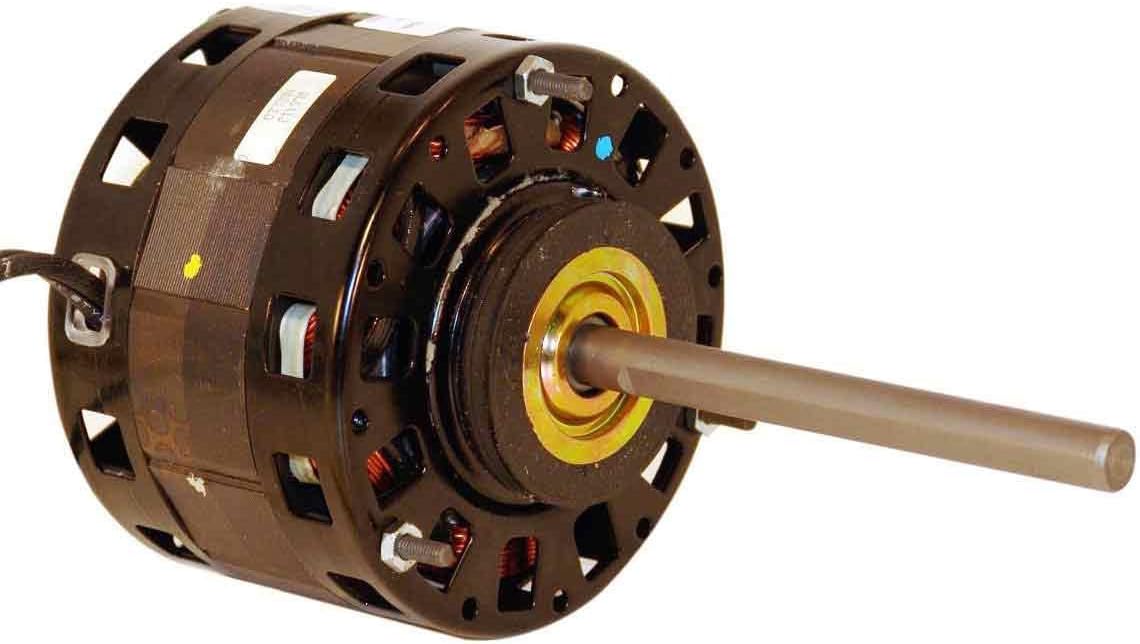

The Century BL6412 is a 1/6 hp direct drive fan/blower motor. This single-phase motor operates at 1,050 RPM on 115V AC and 60 Hz, functioning to power the fan or blower in an HVAC system. It is CSA certified and UL listed, with a maximum ambient temperature rating of 40 degrees C.
