- Full Load Amps: 11.6 A
- Stud Size: #8-32
- Voltage Compatibility: 115V AC
- HP: 1
- Max. Ambient Temp.: 40 Degrees C
- Voltage: 115V AC
Specifications
| Part Number | BDL1106 |
| Brand | Century |
| Duty | Continuous |
| No. of Speeds | 3 |
| Full Load Amps | 11.6 A |
| Motor Mounting Type | Resilient Rings |
| Capacitor Required | Yes |
| Resilient Ring Dia. | 2 1/2 in |
| Body Dia. | 5 5/8 in |
| Overall Length | 12 3/4 in |
| Mounting Stud Length | 1 11/20 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 3/8 in |
| Stud Size | #8-32 |
| Length Less Shaft | 6 5/16 in |
| Lead Length | 27 in |
| Item | Direct Drive Fan/Blower Motor |
| Voltage Compatibility | 115V AC |
| Nominal Efficiency | 60.6 % |
| HP | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Design | Permanent Split Capacitor |
| Voltage | 115V AC |
| Ring to Ring Center | 6 21/50 in |
| Motor Mounting Position | Horizontal |
| Hz | 60 Hz |
| Motor Thermal Protection | Auto |
| Motor Shaft Design | Double-Flat |
| Motor Enclosure Design | Open Enclosed |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Motor Shaft Rotation | CCW |
| Motor Bearings | Ball |
| Motor Application | Direct Drive Fan/Blower |
| Phase | Single |
| Frame | 48Y |
| Ins. Class | B |
| Standards | CSA Certified, UL Listed |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Service Factor | 1 |
| Weight | 21 lb |
| Motor Frame Material | Steel |
| Includes | (4) Snap Rings (615035) |
| Usable @ 208V | No |
| Stud Quantity | 4 |
| Usable @ 200V | No |
| Output Watts | 0.75 kW |
| Inverter Rated | No |
Description

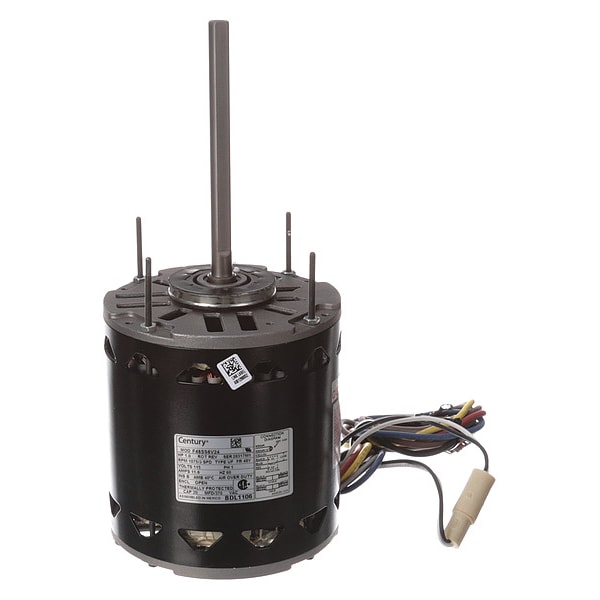

The Century BDL1106 is a direct drive fan/blower motor. As a blower motor, it powers the fan that circulates air through the system. This 1 HP, 115V AC motor operates at 1075 RPM and has a full load amp rating of 11.6 A, requiring a capacitor for operation.
