- Hz: 60 Hz
- Stud Size: #10-32
- Nameplate RPM: 1,050
- Full Load Amps: 3.2,2.1,1.5 A
- Max. Ambient Temp.: 40 Degrees C
- Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Specifications
| Part Number | B6415 |
| Brand | Century |
| Mounting Stud Pattern | 3-1/8" x 3-1/8" |
| Duty | Continuous |
| Motor Thermal Protection | Auto |
| Hz | 60 Hz |
| Motor Sub Application | Direct Drive Fan/Blower |
| Stud Size | #10-32 |
| Resilient Ring Dia. | 2 1/2 in |
| Bolt Circle Dia. | 4 7/16 in |
| Shaft Length | 5 1/2 in |
| Body Dia. | 5 in |
| Shaft Dia. | 1/2 in |
| Length Less Shaft | 4 15/16 in |
| Lead Length | 36 in |
| Overall Length | 9 3/8 in |
| Item | Direct Drive Blower Motor |
| Motor Enclosure Design | Open Air-Over |
| Nameplate RPM | 1,050 |
| No. of Speeds | 3 |
| Standards | CSA Certified, UL Recognized |
| Full Load Amps | 3.2,2.1,1.5 A |
| Motor Shaft Rotation | CCWLE |
| Includes | Resilient Mounting Ring |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Motor Design | Shaded Pole |
| Motor Mounting Position | Horizontal |
| Ring to Ring Center | 4 9/16 in |
| Application | Blowers, Fans and Air Circulators |
| Capacitor Required | No |
| HP | 1/5, 1/8, 1/10 |
| Voltage | 208-230V AC |
| Motor Application | HVAC/R |
| Motor Shaft Design | Flat |
| Phase | Single |
| Ins. Class | A |
| Motor Bearings | Sleeve |
| RPM Range | 1,001-1,100 |
| Frame | 42Y |
| Weight | 11 lb |
| Number of Shafts | 1 |
| Usable @ 200V | No |
| Stud Quantity | 4 |
| Mounting Holes | 4 |
| Usable @ 208V | Yes |
| Mounting | Ring |
| Number of Speeds | 3 |
Description

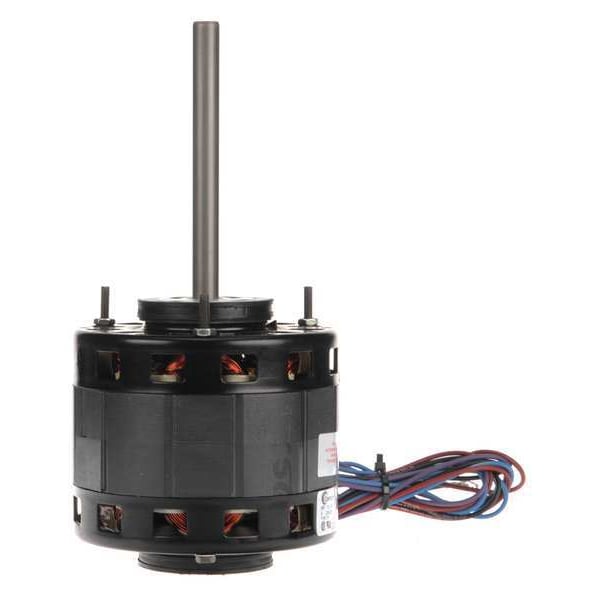

The Century B6415 is a direct drive blower motor with an open air-over enclosure. It operates at 60 Hz with a nameplate RPM of 1,050 and is available in 208-230V configurations at 1/5, 1/8, and 1/10 HP, drawing full load amps of 3.2, 2.1, and 1.5 A respectively. This motor is CSA Certified and UL Recognized, and it includes a resilient mounting ring.
