- Phase: 1
- Frequency: 60 Hz
- Wheel Diameter: 7 1/8 in
- Inlet Diameter: 4 1/4 in
- Motor Horsepower: 1/22 hp
- Maximum Static Pressure: 7/8 in wc
Specifications
| Part Number | B47120 |
| Brand | Fasco |
| Fits Brand | Fasco |
| Phase | 1 |
| Frequency | 60 Hz |
| Features | Open Air Over |
| Standards | CSA Certified, UL Listed |
| Wheel Diameter | 7 1/8 in |
| Overall Depth | 7 1/16 in |
| Inlet Diameter | 4 1/4 in |
| Overall Width | 10 5/16 in |
| Outlet Width | 2 1/2 in |
| Overall Height | 11 1/8 in |
| Outlet Height | 4 1/8 in |
| Wheel Width | 2 1/8 in |
| Item | Blower Assembly, 115V, 3 SPDT |
| Number of Discharge Positions | 1 |
| Speed Controllable | Variable Speed |
| Includes Drive Package | Yes |
| Airflow @ 0.100 in SP | 180 cfm |
| Motor Horsepower | 1/22 hp |
| Motor Type | Shaded Pole |
| Mounting Orientation | Horizontal |
| Flange Type | Non-Flanged |
| Drive Type | Direct Drive |
| Assembly | Assembled |
| Airflow @ 0.000 in SP | 180 cfm |
| Maximum Fan Speed | 1,500 RPM |
| Number of Speeds | 3 |
| Motor Insulation Class | B |
| Motor Speed | 1,500 RPM |
| Maximum Static Pressure | 7/8 in wc |
| Housing Material | Steel |
| Current | 2 A |
| Includes Motor | Yes |
| Maximum Ambient Temperature | 104 Degrees F |
| Bearing Type | Sleeve |
| Nameplate Voltage | 115V AC |
| Thermal Overload Protection | Yes |
| Outlet Shape | Rectangular |
| Airflow @ 0.500 in SP | 150 cfm |
| Number of Inlets | 1 |
| Motor Enclosure | Open Air-Over |
| Discharge Position | Bottom Horizontal |
| Airflow @ 0.250 in SP | 170 cfm |
| Rotation | CW |
| Wheel Material | Aluminum |
| Electrical Connection | 14 to 12 in Leads with Strip |
| Airflow @ 0.400 in SP | 165 cfm |
| OEM Replacement | No |
Description

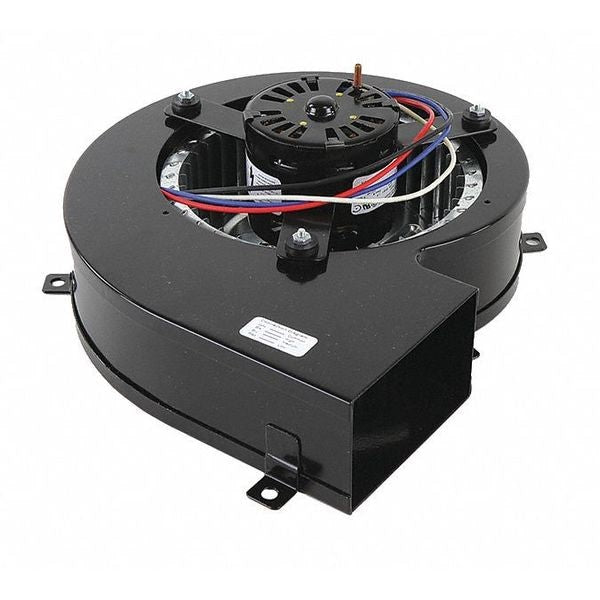

The Fasco B47120 is a 115V, 3-speed blower assembly with a 1/22 hp shaded pole motor. It moves air across a coil or heat exchanger in an HVAC system. This unit is CSA certified and UL listed, features open air over cooling, and includes a drive package. It operates on 60 Hz, single-phase power.
