- Full Load Amps: 0.90/0.45
- Housing Material: Steel
- Blower Wheel Diameter: 3 13/16 in
- Inlet Diameter: 3 7/8 in
- Outlet Diameter: 2 1/8 in
- Wheel Diameter: 3 3/4 in
Specifications
| Part Number | B23617 |
| Brand | Fasco |
| CFM @ 0.100-In. SP | 72 |
| Drive Type | Direct Drive |
| Full Load Amps | 0.90/0.45 |
| Housing Material | Steel |
| Inlet Dia. | 3 7/8 in |
| Overall Height | 5 7/8 in |
| Overall Width | 6 3/8 in |
| Blower Wheel Diameter | 3 13/16 in |
| Lead Length | 6 in |
| Blower Wheel Width | 1 7/8 in |
| Outlet Dia. | 2 1/8 in |
| Overall Depth | 8 3/4 in |
| Inlet Diameter | 3 7/8 in |
| Outlet Diameter | 2 1/8 in |
| Wheel Width | 1 7/8 in |
| Wheel Diameter | 3 3/4 in |
| Number of Speeds | 1 |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115/230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Enclosure | Open Centrifugal Switch |
| Agency Compliance | CSA Compliant, UL Recognized |
| Hz | 50/60 |
| CFM @ 0.700-In. SP | 1530139012751175 |
| Motor Insulation | Class B |
| Housing Color | Black |
| CFM @ 0.600-In. SP | 55 |
| CFM @ 0.200-In. SP | 146 |
| Max. Ambient Temp. | 104 Degrees F |
| RPM | 3000 |
| CFM @ 0.900-In. SP | 41 cfm |
| CFM @ 0.400-In. SP | 793 |
| Housing Finish | Paint |
| Bearing Type | Sleeve |
| Wheel Type | Forward-Curved |
| CFM @ 0.300-In. SP | 64 |
| CFM @ 0.500-In. SP | 12,030 |
| Item | OEM Blower |
| Max. Inlet Temp. | 104 Degrees F |
| Mounting Position | Shaft Horizontal |
| CFM @ 0.800-In. SP | 318 |
| CFM @ 1.000-In. SP | 33 cfm |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115/230V AC |
| Replacement For | 80270 |
| Motor Insulation Class | B |
| Features | 8 to 6 in Leads with Strip, 9.5 to 7.5 in and 8 to 6 in Switch Leads with Strip, Open Air Over |
| Outlet Shape | Round |
| Standards | UL Recognized, CSA Recognized |
| Motor Horsepower | 1/50 hp |
| Discharge Position | All |
| Number of Discharge Positions | 4 |
| Motor Speed | 3,000 RPM |
| Wheel Material | Steel |
| Flange Type | Non-Flanged |
| Minimum Ambient Temperature | 40 Degrees C |
| Thermal Overload Protection | Yes |
| Assembly | Assembled |
| Includes Drive Package | Yes |
| Airflow @ 0.000 in SP | 70 cfm |
| OEM Replacement | No |
| Frequency | 50/60 Hz |
| Electrical Connection | Power Cord and Plug |
| Motor Type | Shaded Pole |
| For Air Type | Clean |
| Includes Motor | Yes |
| Maximum Fan Speed | 3,300 RPM |
| Maximum Ambient Temperature | 40 Degrees C |
| Maximum Inlet Air Temperature | 104 Degrees F |
| Number of Inlets | 1 |
| Current | 0.90/0.45 A |
| Housing Material Finish | Painted |
| Hazardous Location Specification | No |
| Chemical Resistant | No |
| Hazardous Location Application | No |
| Airflow @ 1.500 in SP | 0 cfm |
| Airflow @ 2.000 in SP | 0 cfm |
| For High-Static Pressure Applications | No |
| Speed Controllable | No |
| Airflow @ 2.500 in SP | 0 cfm |
| Airflow @ 1.250 in SP | 0 cfm |
| Airflow @ 9.000 in SP | 0 cfm |
| Airflow @ 0.125 in SP | 65 cfm |
| Airflow @ 3.000 in SP | 0 cfm |
| Airflow @ 0.250 in SP | 62 cfm |
| Airflow @ 5.000 in SP | 0 cfm |
| Airflow @ 4.000 in SP | 0 cfm |
| Rotation | CCW |
| Airflow @ 1.000 in SP | 5 cfm |
| Maximum Static Pressure | 1 in wc |
| Airflow @ 0.750 in SP | 42 cfm |
| Spark Resistant Construction Type | Not Rated |
| Minimum Fan Speed | 3,000 RPM |
| Airflow @ 3.500 in SP | 0 cfm |
| Airflow @ 0.500 in SP | 54 cfm |
| Airflow @ 4.500 in SP | 0 cfm |
| Corrosion Resistant | No |
| Voltage | 115/230VAC |
Description

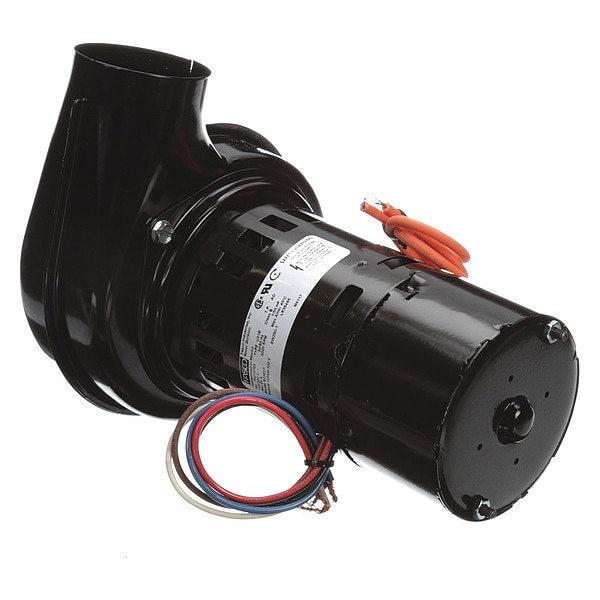

The Fasco B23617 is a direct-drive, shaded-pole OEM specialty blower motor. This motor powers a draft inducer blower, operating at 3000 RPM in a single speed with an open centrifugal switch enclosure. It is a 1-phase unit rated for 0.90/0.45 full load amps and 115/230V AC, housed in a steel frame.
