- Phase: 1
- Frequency: 60 Hz
- Flange Size: 2.5in
- Wheel Diameter: 2 1/2 in
- Inlet Diameter: 2 5/8 in
- Maximum Static Pressure: 1/8 in wc
Specifications
| Part Number | B22513 |
| Brand | Fasco |
| Fits Brand | Fasco |
| Phase | 1 |
| Frequency | 60 Hz |
| Features | 12 to 10 in Lead with Strip, C-Frame, Class B Insulation and 40 Degrees C Ambient, Open Air Over, Shaded Pole, Sleeve Bearing, Thermally Protected |
| Standards | CSA Certified, UL Listed |
| Flange Size | 2.5in |
| Wheel Width | 13 in |
| Overall Width | 4 1/8 in |
| Outlet Width | 14 3/4 in |
| Overall Height | 3 1/2 in |
| Wheel Diameter | 2 1/2 in |
| Housing Depth | 17.7 in |
| Overall Depth | 17 3/4 in |
| Outlet Height | 1 5/8 in |
| Housing Height | 3.5 in |
| Housing Width | 4.2 in |
| Inlet Diameter | 2 5/8 in |
| Item | Blower, 115V, 2780 rpm, 215 cfm, 1 SPDT |
| Flange Type | Flanged |
| Motor Speed | 2,800 RPM |
| Includes Drive Package | Yes |
| Number of Inlets | 1 |
| Motor Insulation Class | B |
| High-Efficiency Motor | No |
| Drive Type | Direct Drive |
| Thermal Overload Protection | Yes |
| Airflow @ 0.100 in SP | 196 cfm |
| Maximum Static Pressure | 1/8 in wc |
| Airflow @ 0.200-In. SP | 70 cfm |
| Airflow @ 0.250 in SP | 70 cfm |
| Housing Material | Steel |
| Wheel Material | Aluminum |
| Bearing Type | Sleeve |
| Motor Type | Shaded Pole |
| Maximum Ambient Temperature | 40 Degrees C |
| Motor Horsepower | 1/40 hp |
| Nameplate Voltage | 115V AC |
| Airflow @ 0.000 in SP | 215 cfm |
| Rotation | CW |
| Current | 1.3 A |
| Number of Speeds | 1 |
| Assembly | Unassembled |
| Outlet Shape | Rectangular |
| Includes Motor | Yes |
| Blower Type | Transflow Blower |
Description

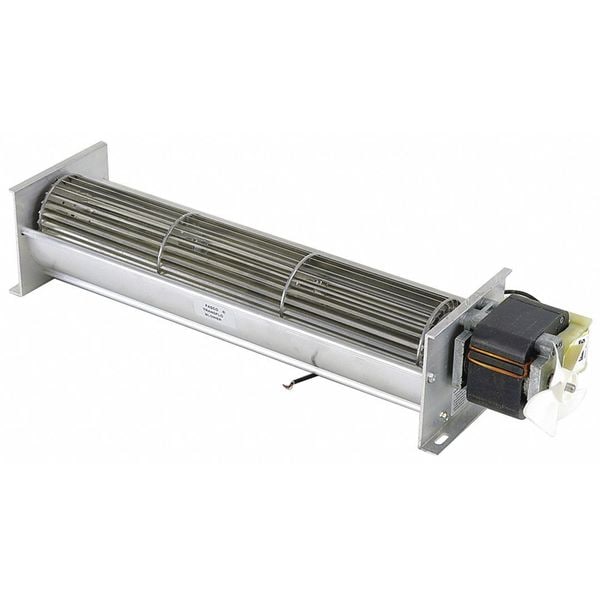

The Fasco B22513 is a 115V, 2780 rpm, 215 cfm blower with a 1 SPDT switch. This direct-drive blower moves air at a maximum static pressure of 1/8 in wc and is thermally protected, featuring a shaded-pole, sleeve-bearing C-frame motor with Class B insulation. It is CSA Certified and UL Listed.
