- Max. HP: 5 hp
- Output Frequency Range: 0.1 to 599 Hz
- Output Voltage: 240V AC
- Input Frequency: 50/60 Hz
- Torque @ 1 Hz: 1.5
- Max. Output Amps: 17.5 A
Specifications
| Part Number | ATV320U40M3C |
| Brand | Schneider Electric |
| Start/Stop Control | Programmable |
| Standards | EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274 |
| Starting Torque | 1.5 |
| Max. HP | 5 hp |
| Displays | Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable |
| Depth | 5.9 in |
| Height | 7.24 in |
| Width | 5.51 in |
| Overall Height | 7 1/4 in |
| Overall Width | 5 1/2 in |
| Overall Depth | 6 1/4 in |
| Output Frequency Range | 0.1 to 599 Hz |
| Output Voltage | 240V AC |
| Adjustable Deceleration Time | 0 to 6,000 sec |
| Enclosure | Totally Enclosed |
| Input Frequency | 50/60 Hz |
| Display Type | LED |
| Key Pad Lockout | Yes |
| Dynamic Braking | No |
| Torque @ 1 Hz | 1.5 |
| Max. Output Amps | 17.5 A |
| Accepts Input Control Signal | 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC |
| Output Phase AC | Three |
| Input Phase AC | Three |
| With Line Contactor / No Line Contactor | No Line Contactor |
| With Bypass / No Bypass | No Bypass |
| Control Type | Keypad, Remote, Terminal, Network |
| Protection | Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive |
| Adjustable Acceleration Time | 0 to 6,000 sec |
| Control Method | Keypad, Remote, Terminal, Network |
| Digital Readout | Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable |
| Item | Variable Speed Drive |
| For Use With | three-phase Asynchronous, Synchronous Motors |
| Input Voltage | 240V AC |
| Number of Outputs | (1) Analog; (3) Discrete |
| Application | Complex machines |
| Number of Inputs | (3) Analog; (7) Discrete |
| Maximum Output Current | 17.5 A |
| Style | Compact |
| Ethernet Port Included | No |
| Input Voltage Range | 170 to 264V AC |
| Enclosure Rating | NEMA 1 |
| Output Type | Analog, Discrete |
| Input Type | Analog, Discrete |
| Output Voltage Range | 200V AC to 240V AC |
| Series | Altivar 320 |
| Torque Application | Constant Torque, Variable Torque |
| Maximum Output Power | 5 hp |
| Brake Chopper Included | Yes |
| Color | Black |
Description

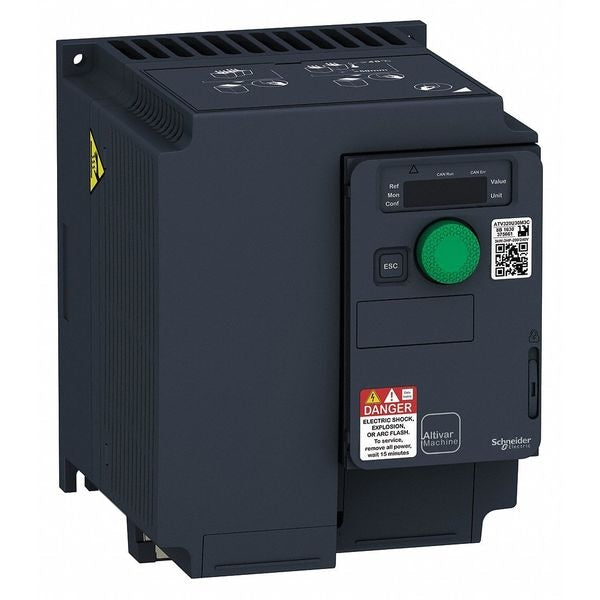

The Schneider Electric ATV320U40M3C is a variable frequency drive (VFD) rated for 5 HP at 240V AC three-phase. It controls motor speed by adjusting output frequency from 0.1 to 599 Hz and delivers 1.5 times the motor's rated torque at 1 Hz. The drive complies with EN/IEC 61800-3, EN/IEC 61800-5-1, UL 508C, and CSA C22.2 No 274, among other standards.
