- Output Voltage: 240V AC
- Input Frequency: 50/60 Hz
- Accepts Input Control Signal: 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
- Input Voltage: 240V AC
- Max. HP: 1 hp
- Output Frequency Range: 0.1 to 599 Hz
Specifications
| Part Number | ATV320U07M3C |
| Brand | Schneider Electric |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Control Method | Keypad, Remote, Terminal, Network |
| Dynamic Braking | No |
| Output Voltage | 240V AC |
| Input Frequency | 50/60 Hz |
| Height | 5.62 in |
| Width | 2.83 in |
| Depth | 5.11 in |
| Overall Height | 5 5/8 in |
| Overall Width | 2 7/8 in |
| Overall Depth | 5 1/2 in |
| With Bypass / No Bypass | No Bypass |
| Key Pad Lockout | Yes |
| Display Type | LED |
| Item | Variable Speed Drive |
| Accepts Input Control Signal | 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC |
| Control Type | Keypad, Remote, Terminal, Network |
| Input Voltage | 240V AC |
| Max. HP | 1 hp |
| Starting Torque | 1.5 |
| Output Frequency Range | 0.1 to 599 Hz |
| Max. Output Amps | 4.8 A |
| Start/Stop Control | Programmable |
| Protection | Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive |
| Digital Readout | Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable |
| Torque @ 1 Hz | 1.5 |
| Standards | EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274 |
| Adjustable Deceleration Time | 0 to 6,000 sec |
| Displays | Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable |
| Adjustable Acceleration Time | 0 to 6,000 sec |
| For Use With | three-phase Asynchronous, Synchronous Motors |
| Enclosure | Totally Enclosed |
| Output Phase AC | Three |
| Input Phase AC | Three |
| Application | Complex machines |
| Series | Altivar 320 |
| Number of Outputs | (1) Analog; (3) Discrete |
| Output Type | Analog, Discrete |
| Enclosure Rating | NEMA 1 |
| Ethernet Port Included | No |
| Output Voltage Range | 200V AC to 240V AC |
| Maximum Output Current | 4.8 A |
| Color | Black |
| Input Voltage Range | 170 to 264V AC |
| Maximum Output Power | 1 hp |
| Number of Inputs | (3) Analog; (7) Discrete |
| Style | Compact |
| Brake Chopper Included | Yes |
| Input Type | Analog, Discrete |
| Torque Application | Constant Torque, Variable Torque |
Description

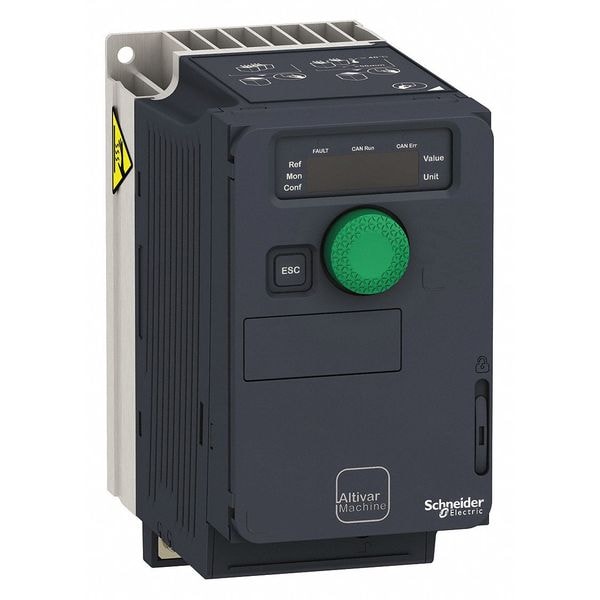

The Schneider Electric ATV320U07M3C is a variable speed drive, also known as a variable frequency drive. This type of drive controls the speed of an AC motor by varying the frequency and voltage of the power supplied to it. It accepts input control signals of 0 to 10V DC, 0 to 20mA adjustable, or bipolar -10 to 10V DC, and operates with an input voltage of 240V AC and an output voltage of 240V AC, supporting a maximum of 1 hp.
