- Stud Size: #8-32
- Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
- Max. Ambient Temp.: 40 Degrees C
- Nameplate RPM: 1,725
- Hz: 60 Hz
- Phase: Single
Specifications
| Part Number | ARB2024L3 |
| Brand | Century |
| Shaft Length | 1 1/2 in |
| Ring to Ring Center | 7 1/2 in |
| Standards | CSA Certified, UL Recognized |
| Motor Bearings | Ball |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Shaft Dia. | 1/2 in |
| Stud Size | #8-32 |
| Overall Length | 9 7/16 in |
| Resilient Ring Dia. | 2 1/2 in |
| Body Dia. | 5 5/8 in |
| Bolt Circle Dia. | 5 3/16 in |
| Length Less Shaft | 7 13/16 in |
| Mounting Stud Length | 7/8 in |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Application | HVAC/R |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW/CCW |
| Duty | Continuous |
| Nameplate RPM | 1,725 |
| Hz | 60 Hz |
| No. of Speeds | 1 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Ins. Class | B |
| Phase | Single |
| Mounting Stud Location | Shaft End |
| Frame | 48Y |
| Motor Shaft Design | Flat |
| Application | Blowers, Fans and Air Circulators |
| Motor Mounting Position | Horizontal |
| Capacitor Required | No |
| Voltage | 115/208-230V AC |
| Motor Design | Split-Phase |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| HP | 1/4 |
| Includes | Resilient Base |
| Full Load Amps | 3.3/1.7/1.7 A |
| RPM Range | 1,701-1,800 |
| Item | Direct Drive Blower Motor |
| Motor Sub Application | Direct Drive Fan/Blower |
| Number of Shafts | 1 |
| Stud Quantity | 4 |
| Weight | 16 lb |
| Motor Frame Material | Steel |
| Usable @ 208V | Yes |
| Mounting Holes | 4 |
| Usable @ 200V | No |
| Duty Cycle | Continuous |
| Number of Speeds | 1 |
| Mounting | Cradle Base |
Description

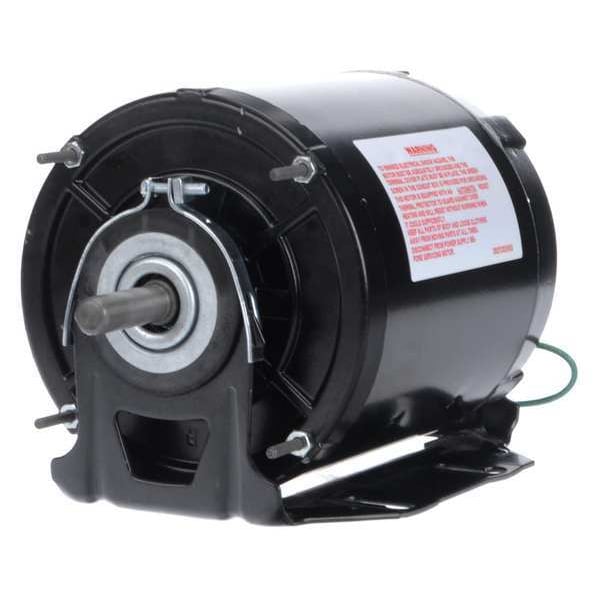

The Century ARB2024L3 is a single-phase, 1/4 HP motor with a nameplate speed of 1,725 RPM, compatible with 115/208-230V AC power at 60 Hz. This motor is designed for HVAC/R applications and features a totally enclosed air-over enclosure with a cradle base mounting, certified to CSA and UL standards. It operates in a maximum ambient temperature of 40 degrees C.
