- Stud Size: #8-32
- RPM Range: 1,701-1,800
- Voltage: 115/208-230V AC
- Full Load Amps: 2.8/1.4/1.4 A
- Nameplate RPM: 1,725
- Hz: 60 Hz
Specifications
| Part Number | ARB2014L2 |
| Brand | Century |
| Motor Mounting Position | Horizontal |
| No. of Speeds | 1 |
| Motor Shaft Design | Flat |
| Shaft Length | 1 1/2 in |
| Motor Application | HVAC/R |
| Body Dia. | 5 9/16 in |
| Mounting Stud Length | 3/4 in |
| Manufacturers Warranty Length | 1 yr |
| Length Less Shaft | 7 3/8 in |
| Shaft Dia. | 1/2 in |
| Resilient Ring Dia. | 2 1/2 in |
| Bolt Circle Dia. | 5 3/16 in |
| Overall Length | 8 13/16 in |
| Stud Size | #8-32 |
| RPM Range | 1,701-1,800 |
| Mounting Stud Location | Shaft End |
| Duty | Continuous |
| Capacitor Required | No |
| Voltage | 115/208-230V AC |
| Motor Sub Application | Direct Drive Fan/Blower |
| Full Load Amps | 2.8/1.4/1.4 A |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Ring to Ring Center | 6 3/4 in |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Standards | CSA Certified, UL Recognized |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Item | Direct Drive Blower Motor |
| Includes | Resilient Base |
| Nameplate RPM | 1,725 |
| Hz | 60 Hz |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Thermal Protection | Auto |
| Phase | Single |
| Motor Service Factor | 1 |
| Frame | 48Y |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Design | Split-Phase |
| Application | Blowers, Fans and Air Circulators |
| HP | 1/6 |
| Motor Mounting Type | Cradle Base |
| Ins. Class | B |
| Weight | 14 lb |
| Usable @ 200V | No |
| Mounting Holes | 4 |
| Motor Frame Material | Steel |
| Stud Quantity | 4 |
| Duty Cycle | Continuous |
| Usable @ 208V | Yes |
| Number of Shafts | 1 |
| Number of Speeds | 1 |
| Mounting | Cradle Base |
Description

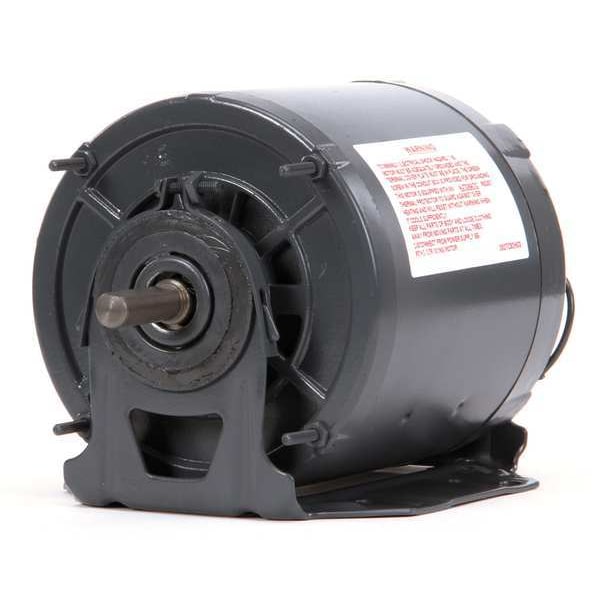

The Century ARB2014L2 is a 1/6 HP, single-phase motor designed for direct-drive fan and blower applications in HVAC/R equipment. It operates at 1725 RPM (1,701-1,800 RPM range) on 115/208-230V AC with full-load amps of 2.8/1.4/1.4 A, and features a totally enclosed air-over enclosure. This motor is CSA Certified and UL Recognized, and does not require a capacitor.
