- Coil Voltage: 120V AC
- NEMA Size: 1
- HP @ 1 Phase - 230V: 3 hp
- HP @ 3 Phase - 575V: 10 hp
- Horsepower @ Three Phase - 240V AC: 7 1/2 hp
- Frequency: 50/60 Hz
Specifications
| Part Number | AN19DN0A5E020 |
| Brand | Eaton |
| Auxiliary Contact Form | 1NO |
| Coil Voltage | 120V AC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Number of Auxillary Contacts | 1 |
| NEMA Size | 1 |
| Product Length/Depth | 4.98 in |
| Overall Height | 7.1 in |
| Overall Depth | 4.98 in |
| Overall Width | 2.6 in |
| Item | NEMA Magnetic Motor Starter |
| Standards | CE, CSA, UL Listed |
| HP @ 1 Phase - 230V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Includes | Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Enclosure Type | Open |
| Weight | 3.92 lb |
| Configuration | Non-reversing |
| Overload Relay | C440 electronic |
| Special Features | With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30) |
| Product Name | Eaton Freedom NEMA motor control starter |
| Horsepower @ Three Phase - 240V AC | 7 1/2 hp |
| Frequency | 50/60 Hz |
| Overload Protection Type | Electronic |
| Mounting Postion | Horizontal |
| Trip Class | 10A/10/20/30 |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Current AC | 27 A |
| Auxiliary Contact Module Capacity | 6 |
| Mounting Style | Surface |
| Operator | None |
| Series | Freedom |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| NEMA Enclosure Rating | No Enclosure |
| Phase | Three |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 4 A |
| Horsepower @ Three Phase - 208V AC | 7 1/2 hp |
| Maximum Overload Relay Current Setting | 20 A |
Description

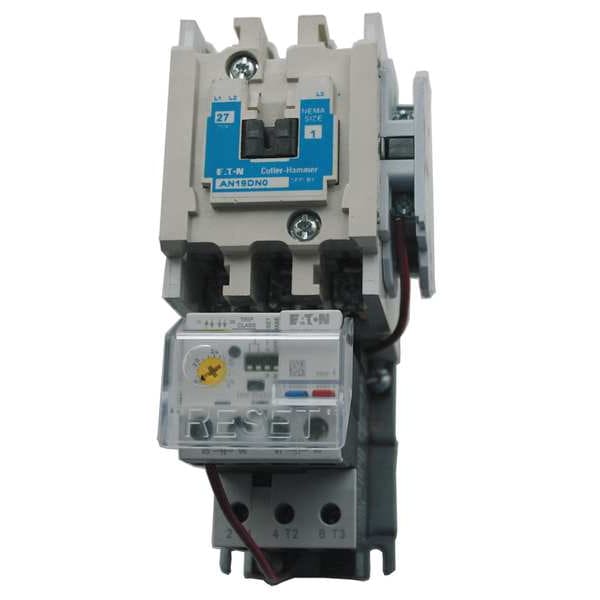

The Eaton AN19DN0A5E020 is a NEMA Size 1, non-reversing magnetic motor starter with a 120V AC coil. It provides motor starting and overload protection, incorporating a Class 20 solid state ambient-compensated overload relay and an instantaneous magnetic trip mechanism. This unit is CE, CSA, and UL Listed, and is rated for 3 hp at 230V single-phase and 10 hp at 575V three-phase.
