- Minimum Pressure Setting: 0.05 in wc
- Sample Line Connection Size: 1/4 in
- Input Voltage: 277V AC
- Minimum Differential Pressure Setting: 0.02 in wc
- Housing Material: Steel
- Minimum Operating Temperature: -40 Degrees F
Specifications
| Part Number | AFS-222-136 |
| Brand | Cleveland Controls |
| Application | Energy Management, HVAC |
| Electrical Rating | 1/4 hp @ 250V AC, 1/8 hp @ 125V AC, 15A @ 125/250/278V AC |
| Product Type | Air Pressure Switch |
| Minimum Pressure Setting | 0.05 in wc |
| Sample Line Connector Type | Integral Compression |
| Overall Width | 3 1/4 in |
| Sample Line Connection Size | 1/4 in |
| Overall Height | 6 1/8 in |
| Item | Air Pressure Switch |
| Input Voltage | 277V AC |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Housing Material | Steel |
| Electrical Connection Type | Hardwired |
| Housing Type | Conduit Box |
| Standards | CE Certified, CSA Certified, FM, UL Listed |
| Minimum Operating Temperature | -40 Degrees F |
| Reset Type | Automatic Reset |
| Maximum Differential Pressure Setting | 0.8 in wc |
| Pressure Setpoint Type | Adjustable |
| Maximum Operating Temperature | 180 Degrees F |
| Pressure Type | Differential, Negative, Positive |
| Maximum Pressure Setting | 12 in wc |
| Mounting Orientation | Vertical |
| Contact Form | SPDT |
| Number of Switches | 1 |
Description

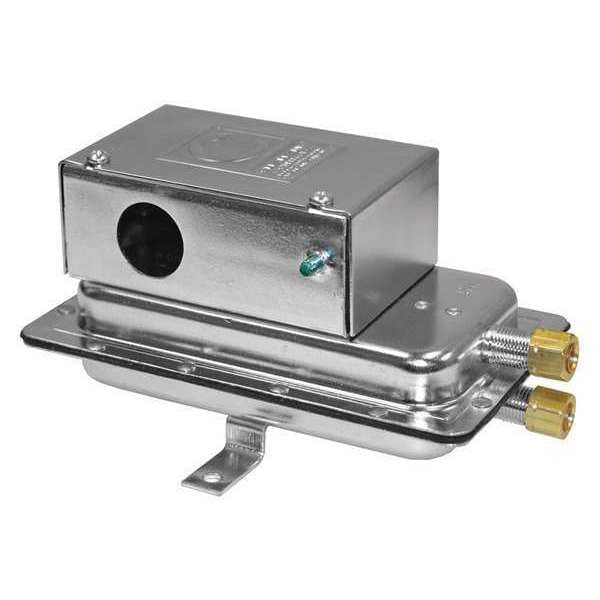

The Cleveland Controls AFS-222-136 is an air pressure switch. This type of part senses changes in air pressure and actuates a switch to control a circuit. It is rated for 1/4 hp at 250V AC, 1/8 hp at 125V AC, and 15A at 125/250/278V AC, with an input voltage of 277V AC and a minimum pressure setting of 0.05 in wc.
