- Coil Voltage: 24V-60V AC, 20V-60V DC
- Impulse Withstand Voltage: 6 kV
- Horsepower @ Three Phase - 240V AC: 2 hp
- Horsepower @ Single Phase - 240V AC: 1 1/2 hp
- Horsepower @ Three Phase - 480V AC: 5 hp
- Horsepower @ Single Phase - 120V AC: 3/4 hp
Specifications
| Part Number | AF09-30-10-11 |
| Brand | Abb |
| Auxiliary Contact Form | 1NO |
| Coil Voltage | 24V-60V AC, 20V-60V DC |
| Terminal Connection Type | Screw |
| Standards | IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2 |
| Working Height | 3000 m |
| Overall Depth | 77 mm |
| Overall Height | 86 mm |
| Overall Width | 45 mm |
| Item | IEC Magnetic Contactor |
| Max. Operating Watts | 4 kW (at 400V, 415V, 440V, 380/400V), 5.5 kW (at 500V, 690V), 2.2 kW (at 220/230/240V) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage | 6 kV |
| Rated Insulation Volts | 600/690V |
| Operating Time | 13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing) |
| Net Weight | 0.27 kg |
| IP Rating | IP20, IP40 |
| Rated Short-Time Withstand Current | 150 A (at 40°C for 10 s), 35 A (at 40°C for 15 min), 60 A (at 40°C for 1 min), 300 A (at 40°C for 1 s), 80 A (at 40°C for 30 s) |
| Horsepower @ Three Phase - 240V AC | 2 hp |
| Horsepower @ Single Phase - 240V AC | 1 1/2 hp |
| Horsepower @ Three Phase - 480V AC | 5 hp |
| Horsepower @ Single Phase - 120V AC | 3/4 hp |
| Horsepower @ Three Phase - 208V AC | 2 hp |
| Frequency | 50/60 Hz |
| Conventional Free Air Thermal Current | 16/35 A (at 40°C) |
| Maximum Voltage Rating | 690V |
Description

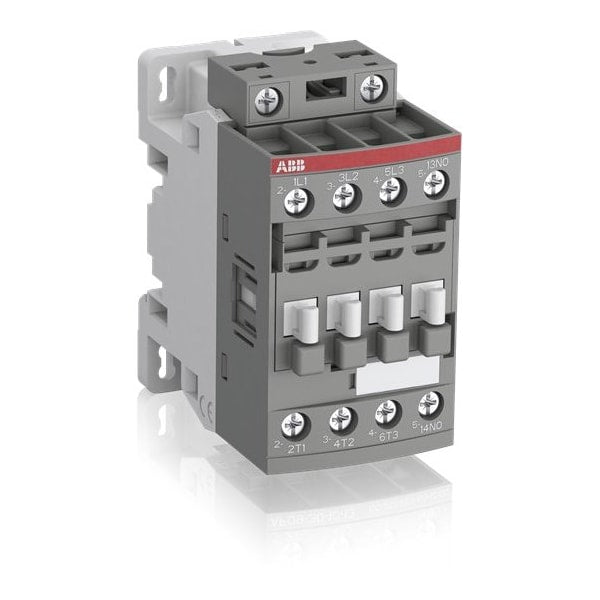

The ABB AF09-30-10-11 is an IEC magnetic contactor with a 1NO auxiliary contact. This contactor uses an electromagnetic coil to open and close power circuits, with a coil voltage range of 24V-60V AC and 20V-60V DC. It complies with IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, and CSA C22.2 standards, and has a maximum operating power of 4 kW at 400V, 415V, 440V, and 380/400V, 5.5 kW at 500V and 690V, and 2.2 kW at 220/230/240V.
