- Process Connection Size: 1/8 in
- Nominal Dial Size: 4 in
- Gauge Nominal Dial Size: 3 3/4 in
- Differential Gauge Connection Size: 1/8 in
- Flange Diameter: 5.5 in
- Bolt Circle Diameter: 5.125 in
Specifications
| Part Number | A3002 |
| Brand | Dwyer Instruments |
| Accuracy | +/-2.00% |
| Process Connection Type | NPT |
| Process Connection Size | 1/8 in |
| Series | A3000 Photohelic |
| Process Connection Gender | Female |
| Nominal Dial Size | 4 in |
| Manufacturers Warranty Length | 1 yr |
| Gauge Nominal Dial Size | 3 3/4 in |
| Differential Gauge Connection Size | 1/8 in |
| Case Depth | 2.5 in |
| Flange Diameter | 5.5 in |
| Manufacturer Warranty Length | 1 yr |
| Bolt Circle Diameter | 5.125 in |
| For Panel Cut-Out Size | 4.812 in |
| Case Diameter | 5 in |
| For Panel Cutout Diameter | 4.812 in |
| Item | Differential Pressure Gauge & Switch |
| Application | Fume Exhaust Systems |
| Process Connection Location | Side |
| Housing Material | Die Cast Aluminum |
| Pressure Range | 0 to 2 in wc |
| Sensor Type | Diaphragm |
| Differential Pressure Gauge Type | Differential Pressure Gauge |
| Body Material | Die Cast Aluminum |
| Relay Type | (2) DPDT |
| Differential Gauge Connection Type | FNPT |
| Power Requirement | 110 to 120V AC @ 50/60 Hz |
| Contact Rating | 10A @ 120/240VAC, 10A @ 28VDC |
| Includes | Instructions |
| Rated Total Pressure | -20 to 0 to 25 psi |
| Differential Pressure Range | 0 to 2 in wc |
| Gauge Operating Temp. Range | 20 Degrees to 120 Degrees F |
| Gauge Connection Location | Side |
| Basic Gauge Case Material | Metal |
| Gauge Primary Range Smallest Graduation | 0.05 |
| Scale Type | Pressure |
| Differential Pressure Range Units | in wc |
| Standards | CE, CSA, UL |
| Gauge Accuracy | +/-2% |
| Differential Pressure Range Value | 0 to 2 |
| Case Material | Plastic |
| Non-Sparking | No |
| Case Shape | Round |
| Includes Calibration Certificate | No |
| Switch Contact Type | DPDT |
| Adjustable Set Points | Yes |
| Includes Mounting Hardware | No |
| Repeatability | +/-1% |
| Lens Material | Polycarbonate |
| Mounting Orientation | Upright Only |
| Panel-Mountable | Yes |
| Compatible Process Media | Air, Non-Combustible and Compatible Gases |
| Dial Color | White |
| Blowout Safety Back | No |
| Pressure Gauge Type | Differential Pressure Gauge with Switch |
| IP/NEMA Rating | Not Rated |
| Removable Bezel | Yes |
| Hazardous Location Rating | Not Rated |
| Switch Electrical Requirements | 10A @ 28V DC; 10A @ 120/240V AC |
| Includes Vent Plug | No |
| Process Temperature Range | 20 Degrees to 120 Degrees F |
| Number of Switches | 2 |
| Pointer Color | Black |
| Gauge Case Material | Plastic |
| Accuracy Details | +/-2% of FS at 70 Degrees F (21.1 Degrees C) |
| Process Media Temperature - Maximum | 120 Degrees F |
| Pressure Measurement - Maximum | 2 in wc |
| Pressure Measurement - Minimum | 0 in wc |
| Process Media Temperature - Minimum | 20 Degrees F |
| Switch Contact Form | DPDT |
Description

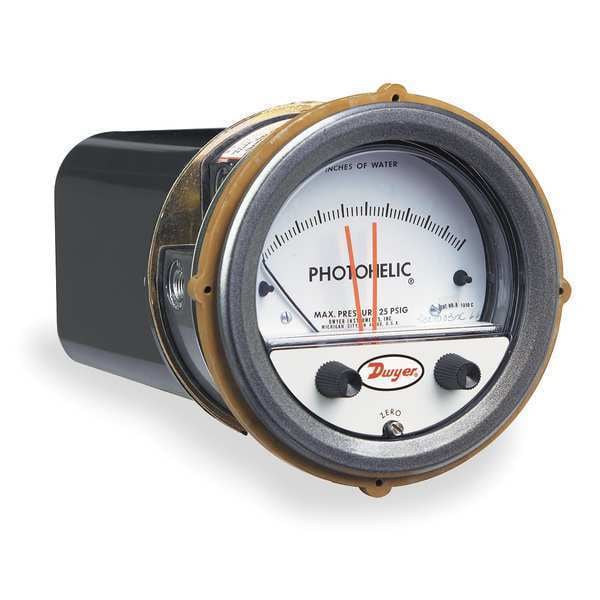

The Dwyer Instruments A3002 is a Series A3000 Photohelic Differential Pressure Gauge & Switch. This device combines a differential pressure gauge with a pressure switch, measuring and controlling pressure in fume exhaust systems. It features 1/8 in female NPT side process connections.
