- Voltage: 120V AC, 240V AC, 24V AC, 277V AC
- Full Load Amps: 20/20/16
- Locked Rotor Amps: 80/80/60
- Cold On Temperature: 38 Degrees F
- Warm On Temperature: 61 Degrees F
- Cold Off Temperature: 32 Degrees F
Specifications
| Part Number | A30-261 |
| Brand | Ranco |
| Switch Type | SPST |
| Switch Action | Normally Closed |
| Voltage | 120V AC, 240V AC, 24V AC, 277V AC |
| Full Load Amps | 20/20/16 |
| Control Range (F) | 32 to 42 |
| Capillary Length | 84 in |
| Cold On | 38 Degrees F |
| Type | Constant Differential Control |
| Cold Off | 32 Degrees F |
| Capillary Type | Capillary with Bulb |
| Constant Differential (F) | 6 |

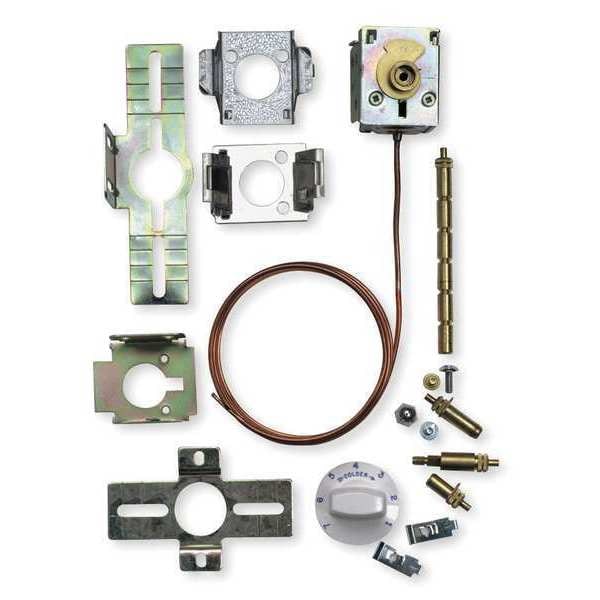

| Includes | Break-off Shaft, Dial Knob and Mounting Bracket for Fast, Easy Installation |
| Pilot Duty Contacts (VA) | 240 VA |
| Warm On | 61 Degrees F |
| Item | Defrost Cycle Control |
| Locked Rotor Amps | 80/80/60 |
| Full Load Current @ 240V AC | 20 A |
| Manufacturer Series | A30 |
| Cold On Temperature | 38 Degrees F |
| Warm On Temperature | 61 Degrees F |
| Full Load Current @ 120V AC | 20 A |
| Cold Off Temperature | 32 Degrees F |
| Pilot Duty @ 120V AC | 240 VA |
| Pilot Duty @ 240V AC | 240 VA |
| Altitude Adjustment | Altitude Adjustable |
| Locked Rotor Current @ 120V AC | 80 A |
| Differential | 6 Degrees F |
| Control Type | Constant Differential |
| Locked Rotor Current @ 240V AC | 80 A |
| Contact Form | SPST |
Description
The Ranco A30-261 is a constant differential control used as a defrost cycle control. This SPST switch operates at 120V AC, 240V AC, 24V AC, and 277V AC with full load amps of 20/20/16 and pilot duty contacts rated at 240 VA. It includes a capillary with bulb, break-off shaft, dial knob, and mounting bracket for installation.
