- Full Load Amps: 0.62
- Housing Material: Aluminum
- Blower Wheel Diameter: 7 7/8 in
- Wheel Diameter: 7 3/4 in
- Outlet Diameter: 2 1/4 in
- Inlet Diameter: 8 3/4 in
Specifications
| Part Number | A273 |
| Brand | Fasco |
| Drive Type | Direct |
| Full Load Amps | 0.62 |
| Housing Material | Aluminum |
| Includes | Gasket |
| Number of Speeds | 2 |
| Overall Height | 10 1/2 in |
| Overall Width | 9 1/2 in |
| Blower Wheel Diameter | 7 7/8 in |
| Overall Depth | 8 in |
| Lead Length | 12 in |
| Blower Wheel Width | 53/64 in |
| Wheel Diameter | 7 3/4 in |
| Outlet Diameter | 2 1/4 in |
| Inlet Diameter | 8 3/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 208/230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| Mounting Position | Shaft Horizontal |
| Replaces | Mfr. Model No. 7062-3972, X38040310-01 |
| Max. Inlet Temp. | 200 Degrees F |
| Hz | 50/60 |
| Motor Enclosure | Open Internal Fan-Cooled |
| Housing Color | Natural |
| Max. Ambient Temp. | 104 Degrees F |
| Wheel Type | Backward-Inclined |
| Agency Compliance | CSA Compliant, UL Recognized |
| Item | OEM Blower |
| RPM | 3500 |
| Maximum Fan Speed | 3,500 RPM |
| Motor Type | Permanent Split Capacitor |
| Outlet Shape | Round |
| Compatible with Brand | Trane |
| Wheel Material | Aluminum |
| Application | Furnaces |
| Motor Insulation Class | B |
| Airflow @ 0.000 in SP | 104 cfm |
| Replacement For Manufacturer Model Number | 7062-3972, X38040310-01 |
| Electrical Connection | Wire Leads |
| Mounting Orientation | Horizontal |
| Maximum Inlet Air Temperature | 200 Degrees F |
| Maximum Motor Speed | 3,500 RPM |
| Nameplate Voltage | 208-230V AC |
| Standards | CSA Certified, UL Listed |
| Current | 0.62 A |
| OEM Replacement | Yes |
| Maximum Static Pressure | 3 3/4 in wc |
| Frequency | 50/60 Hz |
| Voltage | 208/230VAC |
Description

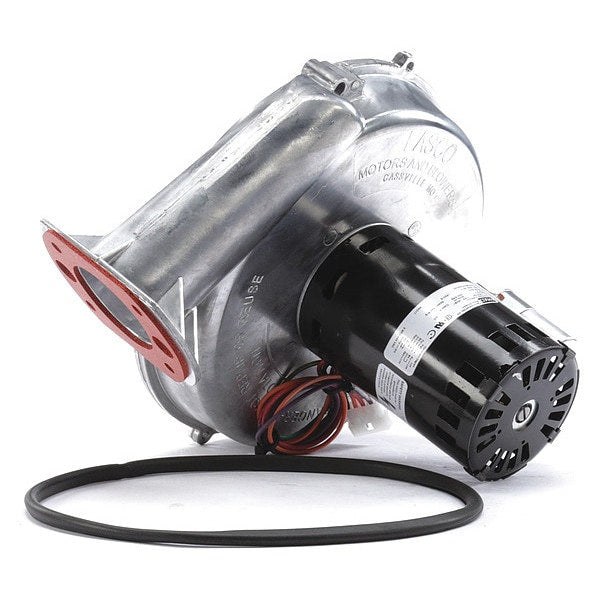

The Fasco A273 is a round OEM specialty blower with a 1/8 HP, 208/230V AC, 3500 RPM, 1-phase permanent split capacitor motor. This direct-drive blower moves air and includes a gasket for installation.
